Elbow 135° There are 32 products.

Showing 1 - 32 of 32 items

REDOX Silicone 135° Elbows - 32 References - Diameters 0.39" to 4" - Optimal Obtuse Angle

Complete range silicone 135 degree elbows REDOX for automotive and industrial circuits. VMQ silicone with polyester fabric reinforcement, resistant from -76°F to 356°F. 32 references available including 135° reducer for diameter transitions with direction change.

Available diameter range: 0.39", 0.43", 0.51", 0.63", 0.75", 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.65", 1.77", 1.89", 2", 2.13", 2.24", 2.36", 2.48", 2.76", 3", 3.15", 3.27", 3.35", 3.54", 3.74", 4". 135° reducer available 2.24-2.76".

Technical specifications: VMQ silicone material and polyester fabric support. Construction 3-ply small diameters, 4-ply medium diameters, 5-ply large diameters (4"). Standard length 3.94", version 7.87" available diameter 2.36". Operating temperature continuous -76°F to 356°F.

135° elbow applications: Obtuse angle ideal smooth transitions with marked direction change. Less restrictive than 90°, more directive than 45°. Perfect obstacle bypasses maintaining flow. Turbo applications requiring intermediate angle. Flow optimization complex circuits.

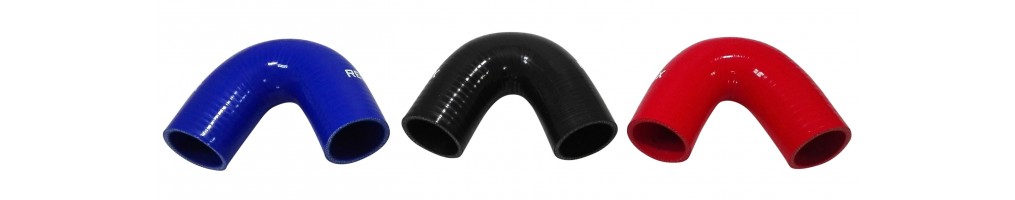

Product advantages: 135° angle optimal balance between direction change and pressure losses. Easy installation without excessive constraints. Generous bend radius preserves hose integrity. New condition, REDOX Silicone Universal brand. Colors blue, black, red available.

135° Elbows FAQ - Frequently Asked Questions

Why choose a 135° elbow? 135° angle offers ideal compromise between significant direction change and flow preservation. Gentler than 90° (less pressure losses), more marked than 45° (clear direction change). Perfect when space allows avoiding right angle while needing important turn.

What is the diameter range? 32 references cover diameters 0.39" to 4". Including small diameters vacuum circuits (0.39-0.51"), medium diameters cooling/air (0.63-2.36"), large diameters turbo/intake (2.48-4"). Unique 135° reducer 2.24-2.76" combines diameter transition and direction change.

What is the 135° reducer? Special reference 2.24-2.76" allowing diameter reduction with 135° direction change in one piece. Avoids combination straight reducer + separate elbow. Compact solution, fewer connections, better flow. Ideal limited space configurations.

Are there different lengths? Standard length 3.94" for majority references, measured elbow center to extremity. Long version 7.87" available diameter 2.36" for applications requiring extended reach. Other diameters possibility custom order specific lengths.

How is ply count determined? Progressive construction: 3-ply diameters up to 1.38", 4-ply 1.5-2.36", 5-ply 2.48" and more. 4" elbow specifically 5-ply reinforced for high pressure applications. Adapted thickness ensures optimal resistance maintaining flexibility.

Is 135° elbow suitable for turbo? Excellent for turbo circuits requiring direction change without excessive restriction. 135° angle preserves air velocity better than 90°. Resists high temperatures turbo outlet. Reinforced construction large diameters supports high boost pressures.

What difference with other angles? 45°: very smooth transition, minimal direction change. 90°: clear right angle, important pressure losses. 135°: optimal compromise, marked direction change with preserved flow. 180°: complete U-turn. Choose per spatial configuration and flow requirements.

Are all colors available? Yes, three standard colors: blue, black, red for all diameters. Aesthetic choice without performance impact. Allows circuit coding, engine bay personalization. Mass-dyed silicone ensures color stability UV and temperature exposure.
