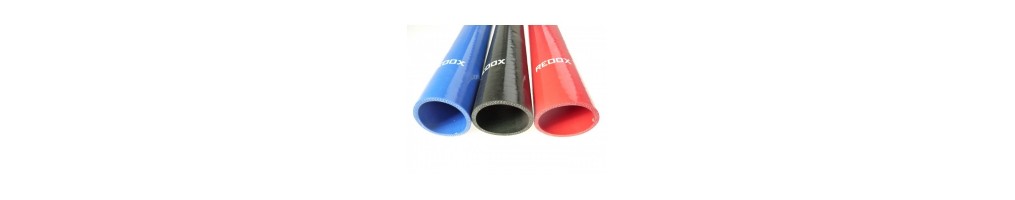

REDOX Silicone Hoses 1 Meter - Pre-cut Lengths 39.4" - Diameters 0.24" to 20"

Complete range silicone hoses pre-cut 1 meter (39.4 inches) REDOX. VMQ silicone reinforced polyester fabric, resistant from -76°F to 356°F. Standardized lengths 39.4" ready to use, diameters up to 20" for heavy industrial applications.

Diameter range available: Small diameters: 0.24", 0.31", 0.39", 0.43", 0.51", 0.63", 0.75". Medium diameters: 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.65", 1.77", 1.89", 2", 2.13", 2.24", 2.36", 2.48", 2.56", 2.76", 3", 3.15", 3.27", 3.54", 3.74". Large diameters: 4", 4.33", 4.92", 6", 7.87", 9.84", 11.8", 15.75", 19.7" (500mm).

Technical specifications: Fixed length: 39.4" factory cut. VMQ silicone material multilayer polyester fabric. Construction 3-ply diameters <1", 4-ply 1-2.36", 5-ply 2.36-6", 6-8 ply >6". Resists coolant fluids, oil/fuel vapors, turbo boost. Temperature -76°F to 356°F.

1 meter hose applications: Straight sections automotive/truck circuits. Industrial large diameter connections. Industrial ventilation up to 20". Machine tool cooling circuits. Marine/agricultural applications. Base for cutting custom sections.

Special versions: Standard VMQ general applications. MEGAFLEX metal spiral superior flexibility. Lengths 6.6-9.8-13ft available. Custom-made 6 weeks lead time.

Advantages: Extended range 0.24-20". Standardized length 39.4". New condition, REDOX Silicone Universal brand.

1 Meter Hoses FAQ - Frequently Asked Questions

What maximum diameter available? REDOX range up to 20 inches (500mm) inner diameter. Diameters 0.24-4" permanent stock. Diameters 4-8" variable availability. Diameters 10-20" on order or limited stock. Heavy industrial applications, large volume ventilation, special circuits.

Are very large diameters reinforced? Yes, progressive construction: 3-ply up to 1", 4-ply 1-2.36", 5-ply 2.36-6", 6-ply 6-12", up to 8-ply diameter 20". High-tenacity polyester reinforcement. Optimized pressure/vacuum resistance. Wall thickness increases with diameter.

Applications diameters >8"? Industrial ventilation production halls. Smoke/dust extraction. Large machine cooling circuits. Marine main engine applications. Industrial generator sets. Wind turbine cooling systems. Tunnel ventilation.

Weight large diameter hoses? Diameter 4": approximately 3.3lbs/meter. Diameter 8": approximately 7.7lbs/meter. Diameter 12": approximately 13.2lbs/meter. Diameter 20": approximately 26.5lbs/meter. Variable weight per ply count. Adapted transport diameters >8".

Clamps for diameters >4"? Reinforced industrial clamps mandatory. Band width minimum 0.79" diameters 4-8". Special clamps 0.98-1.18" width diameters >8". Controlled torque tightening imperative. REDOX offers adapted clamps all dimensions.

Bend radius large diameters? Minimum radius = 4x diameter for >4". Example: diameter 8" = radius 32" minimum. Diameter 20" = radius 80" minimum. Use supports if bends necessary. MEGAFLEX version improves flexibility 30%.

Storage hoses diameter 20"? Horizontal position supported entire length. Avoid oval deformation vertical storage. Room temperature, UV shelter. Periodic rotation if long storage. Special packaging transport. Handling 2 persons minimum.

Lead time large diameters? Diameters 0.24-4": stock, shipping 24-48h. Diameters 4-8": generally 3-5 days. Diameters 10-20": 2-3 weeks if not stock. Custom-made all diameters: 6 weeks. Special transport >12".
