Silicone Engine Coolant Hose Kubota V1505 - Ransomes 933D

Product Definition and Technical Specifications

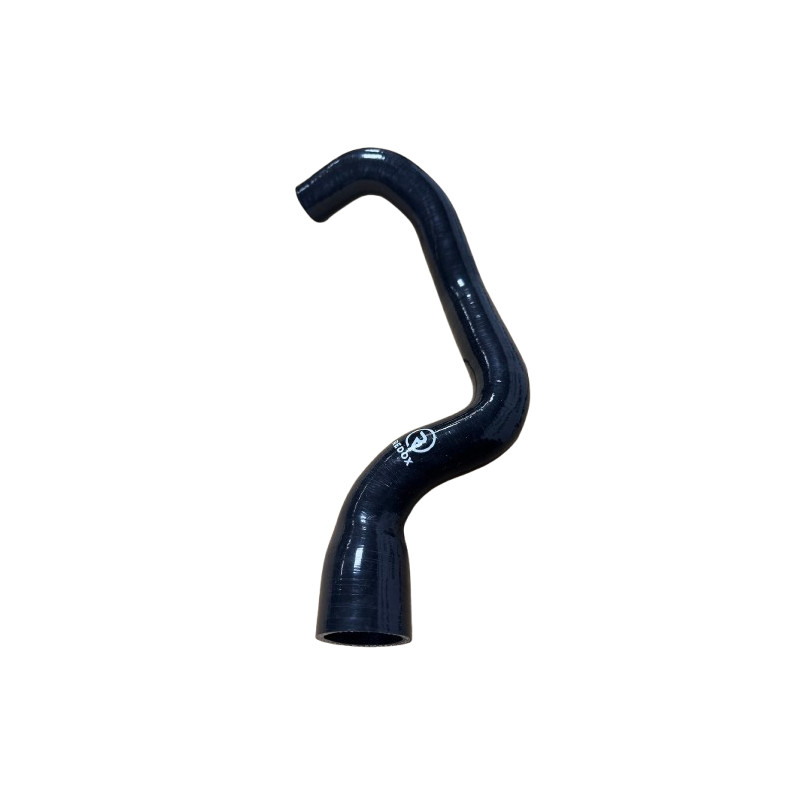

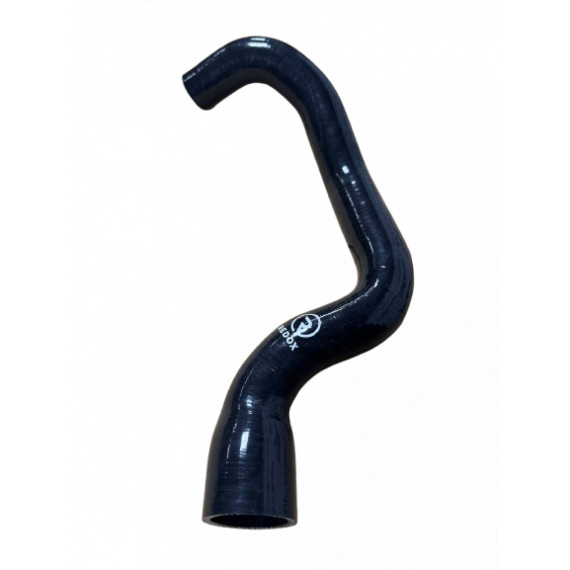

The REDOX engine coolant hose for the Kubota V1505 is a high-performance VMQ (Vinyl Methyl Silicone) hose with a 3-ply polyester-reinforced construction. It is designed to replace the original cooling circuit hose on the Kubota V1505 engine fitted to the Ransomes 933D rotary mower.

Technical specifications:

• Material: Polyester-reinforced VMQ silicone, multi-layer construction
• Ply count: 3
• Wall thickness: 4 mm
• Continuous service temperature range: -50 degrees C to +180 degrees C
• Service pressure: 5 bar
• Fluid compatibility: glycol-based coolants, standard antifreeze solutions

Applications and Compatible Models

This hose is specifically engineered for the Kubota V1505, a 4-cylinder liquid-cooled diesel engine with a displacement of 1,498 cc. This engine is fitted as standard to the Ransomes 933D, a 4-wheel drive self-propelled rotary mower widely used in sports turf maintenance, golf courses, and large-scale green space management. The hose connects the engine cooling circuit between the engine block and the radiator, ensuring optimal thermal management under all operating conditions.

Confirmed compatibility:

• Ransomes 933D Rotary mower (Kubota V1505 engine)
• Kubota V1505 engine (applicable variants)

OEM Reference Numbers

Original Kubota OEM hose references for the V1505 engine cooling circuit:

• Upper radiator hose: Kubota 16266-72940 / 16292-72940
• Lower radiator hose: Kubota 16292-72850

The REDOX silicone hose provides a direct drop-in replacement for these OEM references with no mechanical modification required.

Permanent Stock and Fast Delivery

REDOX keeps this reference in permanent stock. Orders placed before 5 PM are dispatched the same day. Delivery is available across France and Europe within 48 hours via carrier. Minimal machine downtime, maximum operational efficiency.
