T reducer hose Ø50–32 branch Ø38 hydraulic oil Renault Temis 650 IVECO 8065.25 — REDOX

REDOX silicone T reducer hose for the hydraulic oil circuit of the Renault Temis 650 agricultural tractor (2002 model, IVECO 8065.25 TC 6-cyl inline 5.9 L turbo-diesel 154 hp at 2250 rpm, 580 Nm torque). The Temis 650 hydraulic circuit is a closed-loop 85 l/min system with 215 L reservoir — hot pressurised oil mandates FVMQ chemical resistance.

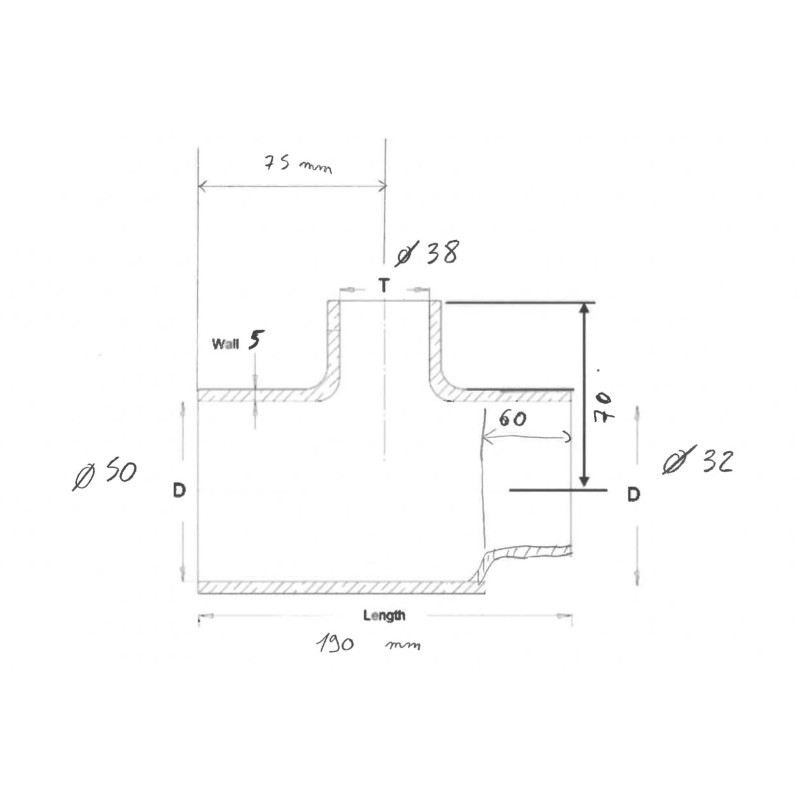

Asymmetric T reducer geometry

• Main reducer Ø50 mm → Ø32 mm over 190 mm developed length
• T branch Ø38 mm, 75 mm leg
• Three distinct diameters: Ø50 + Ø32 + Ø38 mm

Faithful reproduction of the OEM drawing via REDOX MDC process, with dedicated mandrel kept in archives.

Why FVMQ is mandatory

Tractor hydraulic circuits carry hot pressurised oil. Standard VMQ softens against hydrocarbons — the FVMQ inner liner shows Class A chemical resistance to mineral and synthetic oils up to +200 °C continuous.

Technical construction

• FVMQ inner liner
• Multi-layer VMQ outer, BLACK colour
• 5-ply polyester reinforcement (reinforced for agricultural duty)
• 5 mm wall
• -50/+200 °C continuous
• High vibration and engine-bay heat resistance

Delivery

Hose supplied alone. W4 stainless clamps strongly recommended on all 3 outlets (Ø50, Ø32, Ø38 mm). Plug-and-play OEM Renault Agri replacement.
