REDOX 45° Silicone Elbow Hose Ø40mm L1-125mm L2-150mm 5-Ply VMQ

High-Performance 45° Elbow Hose

The REDOX silicone elbow hose is a universal technical component designed for high-pressure and extreme temperature circuits. Its reinforced 5-ply construction and 6mm wall thickness guarantee maximum reliability in engine tuning, industrial applications and cooling systems.

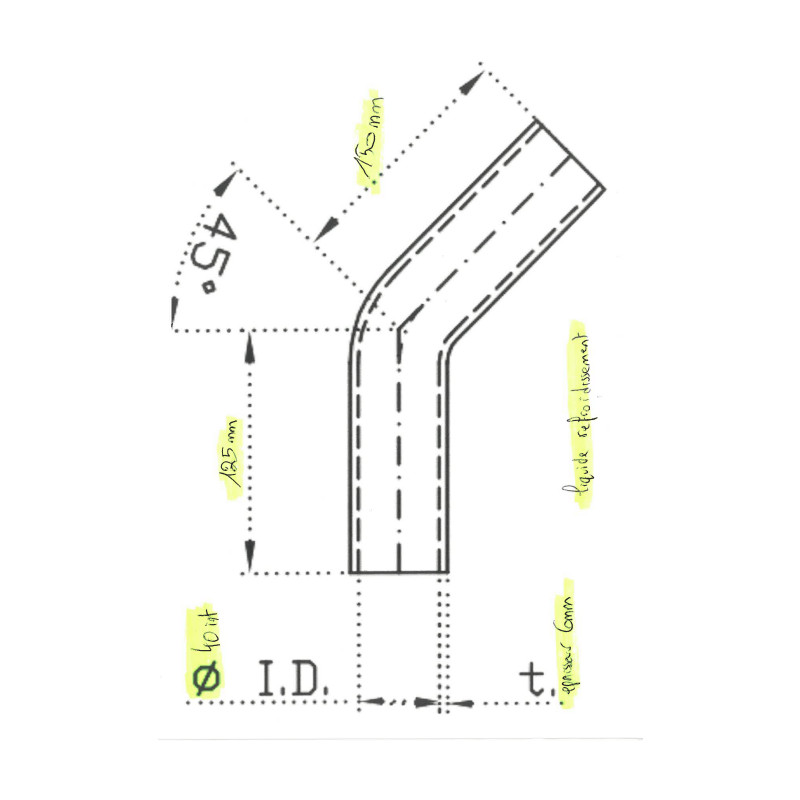

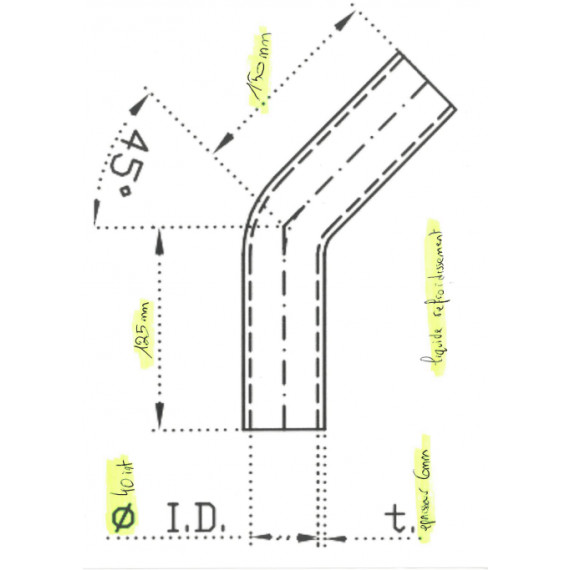

Technical Specifications:

• Internal diameter: 40mm (±0.5mm)
• External diameter: 52mm
• Leg length 1 (L1): 125mm
• Leg length 2 (L2): 150mm
• Bend angle: 45° (±2°)
• Wall thickness: 6mm constant
• Construction: VMQ/polyester 5-ply
• Temperature: -50°C to +180°C continuous
• Service pressure: 6 bar continuous
• Burst pressure: >18 bar

Main Applications

Engine Tuning and Automotive:

• Turbo to intercooler connections with 45° angle
• Air intake circuits post-intercooler
• Radiator coolant connections
• Turbo water and oil circuits
• Blow-off and wastegate systems

Industrial Applications:

• High-pressure pneumatic circuits
• Forced ventilation systems
• Fluid transfers under stress
• Marine applications (seawater)
• Food processing industry

5-Ply Reinforced Construction

The multi-layer structure combines premium VMQ silicone and high-tenacity polyester reinforcement. Each layer works synergistically to provide:

• Thermal resistance: maintains properties from -50°C to +180°C
• Pressure resistance: 6 bar continuous without deformation
• Burst resistance: 3× safety factor vs service pressure
• Vacuum resistance: no collapse down to -0.9 bar
• Durability: lifetime warranty, no hardening

Advantages vs Standard Hoses

✓ 5× more resistant than rubber hoses ✓ Unlimited lifespan - no cracking or hardening ✓ 6mm thickness vs 4mm standard - superior pressure resistance ✓ Chemical resistance: antifreeze, oils, fuels, compressed air ✓ Competition use: extreme vibrations, intense thermal cycles

Material Characteristics

VMQ Silicone (Polydimethylsiloxane):

• Shore A hardness: 65 ±5
• Elongation at break: >400%
• Ozone and UV resistance: excellent
• Compatible: water, glycol, oils, fuels, air

Polyester Reinforcement:

• High-tenacity multiaxial fibres
• Prevents swelling under pressure
• Vacuum resistance
• Flexibility maintained

Installation and Use

Installation:

1. Clean connection stubs
2. Apply silicone lubricant for easier fitting
3. Position according to 45° angle orientation
4. Use stainless steel worm drive clamps (supplied)
5. Tighten progressively to 5-6 Nm

Supplied Clamps:

• 2 stainless steel worm drive clamps included
• Sized for Ø52mm external diameter
• Serflex type with screw, easy to tighten
• Uniform clamping without deformation

Stock and Delivery

Immediate Availability:

• Permanent stock at Les Ulis warehouse (91)
• Order before 5pm = same-day dispatch
• GLS delivery 24-48h France and Europe
• Careful shock-proof packaging

Professional Service:

• Quality control before dispatch
• Customer accounts for garages and industry
• Technical support available
• Lifetime warranty against material defects

FAQ - Frequently Asked Questions

Does this hose withstand high turbo pressure? Yes, the 5-ply construction with 6mm wall thickness supports up to 6 bar continuous. Ideal for engine tuning with high boost and motorsport competition.

Can the L1 or L2 lengths be cut? Yes, you can shorten the legs with a fine saw. Cut perpendicularly and deburr the edge. The 45° angle and diameter cannot be modified.

What's the difference from a 3-ply hose? The 5 plies offer double pressure resistance (6 bar vs 3 bar), better vibration resistance, and superior burst strength. Required for high-pressure applications.

Are the supplied clamps suitable? Yes, 2 stainless steel worm drive clamps are included, sized for this diameter. For critical applications, aviation T-bolt clamps available as option.

Compatible with which fluids? Water, glycol coolant, engine oils, fuels (petrol/diesel/E85), compressed air. Excellent chemical and thermal resistance.

Lifespan in intensive automotive use? Virtually unlimited. VMQ silicone doesn't harden or crack. Lifetime REDOX warranty against material defects. Only external mechanical damage could harm it.
