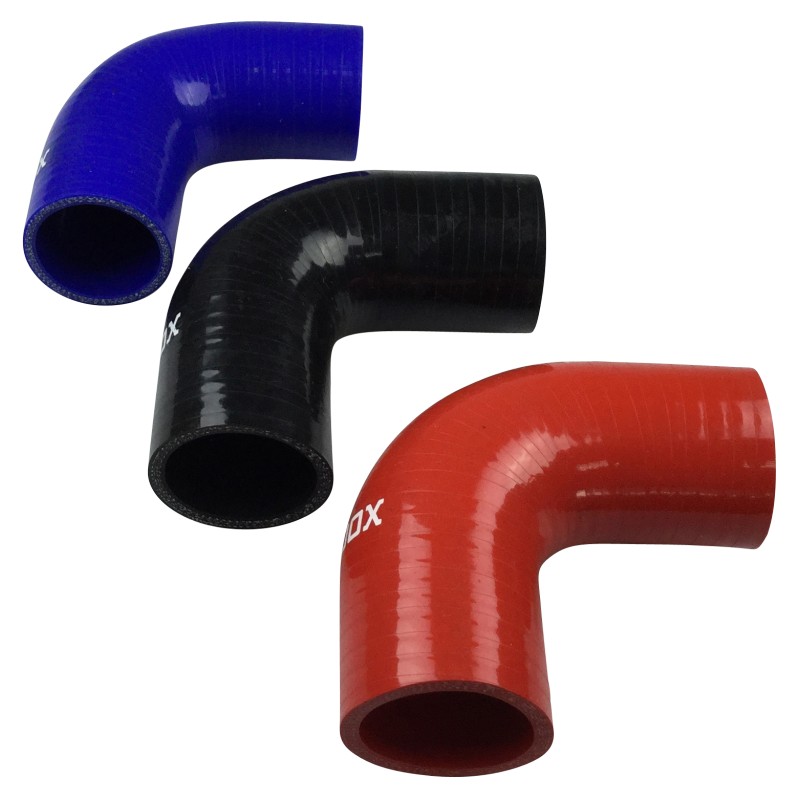

Silicone elbow 90 deg Ø51 mm L100 mm VMQ 4 ply polyester - REDOX

> >>Silicone elbow 90 deg Ø51 mm L100 mm VMQ 4 ply polyester - REDOX

Silicone elbow 90 deg Ø51 mm L100 mm VMQ 4 ply polyester - REDOX

New product

REDOX silicone elbow Ã51 mm angle 90 deg legs L100 mm. VMQ silicone and 4 ply polyester, -60/+180 °C peak. For water-glycol cooling and low pressure turbo intake lines.

More details

12,99 € tax incl.

5 Items

IN STOCK

  • Technical build

    • High density VMQ silicone elastomer, 4 woven polyester plies
    • Constant inner diameter Ã51 mm, bend angle 90 deg, equal legs L100 mm
    • Inner radius 1.5ÃD keeping cross section under vacuum and pressure
    • Working pressure 4 bar continuous, 8 bar short peak
    • Thermal range -60/+180 °C peak, continuous service up to +175 °C
    • Wall thickness around 4.5 mm depending on diameter

    Applications

    Bent connection on engine cooling circuit (radiator, upper or lower hose, thermostat return), low pressure intercooler line, turbo cold side outlet. Compatible with 50 % water-glycol, dry air, intermittent steam, oil splash.

    Advantages vs alternatives

    The moulded elbow avoids hot bending of a straight hose (deformation, leaks, internal kinks). Reinforced silicone absorbs vibration without cracking, vs EPDM rubber which hardens above 110 °C. Smooth inner surface reduces pressure drop and turbulence.

    Delivery

    Item supplied per unit, ready to install, clamps not included. Recommended W4 stainless clamps band 12 mm (one per end), tightening torque 4 Nm. Available 48-72h from REDOX France stock.
