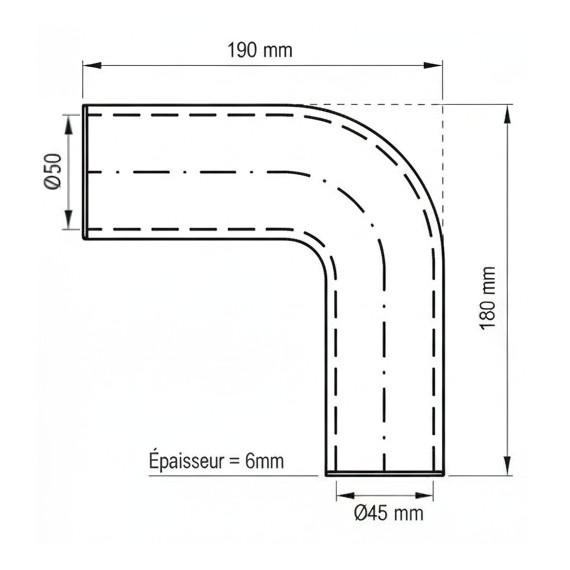

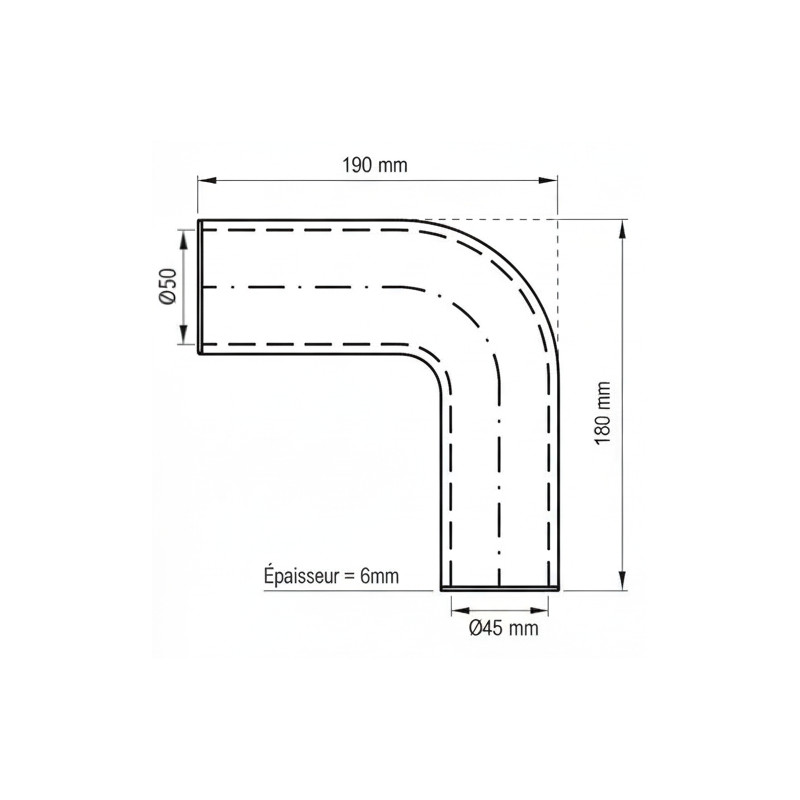

Silicone Hose 90° Elbow Ø45/50mm - 190x180mm - 4-Ply VMQ Reinforced

Product Overview

This technical silicone hose with 90° elbow and Z-configuration is manufactured to precise technical specifications ensuring maximum reliability in high-performance applications. Made from polyester-reinforced VMQ silicone with 4-ply construction and 5mm wall thickness, it offers exceptional resistance to thermal and mechanical stress.

Detailed Technical Specifications

•        Material: High-performance VMQ silicone
•        Reinforcement: 4-ply polyester
•        Wall thickness: 5mm
•        Inlet/outlet diameter: Ø50mm
•        Through diameter: Ø45mm
•        Horizontal length: 190mm
•        Vertical height: 180mm
•        Configuration: 90° elbow
•        Temperature resistance: -50°C to +180°C continuous
•        Pressure resistance: Up to 5 bar

Professional Applications

This technical silicone hose is designed for demanding applications requiring precise 90° elbow geometry with Z-shape configuration. The reinforced 4-ply construction guarantees exceptional longevity in cooling circuits, air intake systems, and other pressurized systems. The specific geometry enables optimal integration in confined spaces while maintaining an optimal bending radius.

Key Technical Features

•        Superior resistance to extreme temperatures
•        Excellent aging and ozone resistance
•        Impermeable to automotive fluids (oil, fuel, coolant)
•        Flexibility maintained even at low temperatures
•        Precise dimensions for installation without modification
•        Permanent stock readily available
•        Same-day dispatch for orders placed before 5pm
•        Fast GLS delivery 24-48h across Europe
•        Lifetime warranty on REDOX silicone
•        Manufacturing to precise technical specifications
•        Technical service available for installation advice

REDOX Benefits

Frequently Asked Questions

Q1: Can this hose be used for a cooling circuit?

A: Yes, 4-ply VMQ silicone with 5mm wall thickness is perfectly suited for cooling circuits. It withstands temperatures from -50°C to +180°C and pressures up to 5 bar.

Q2: What are the advantages of 4-ply silicone over standard rubber?

A: Reinforced 4-ply VMQ silicone offers superior durability, better resistance to extreme temperatures, complete impermeability to fluids, and maintains flexibility under all conditions.

Q3: Are the dimensions exact?

A: Yes, dimensions are controlled in manufacturing: 190mm horizontal length, 180mm vertical height, Ø45/50mm. The hose installs without modification.

Q4: Is the product in stock?

A: Yes, permanent stock. Order before 5pm = same-day dispatch with GLS delivery in 24-48h across Europe.

Q5: What warranty do you offer?

A: All our REDOX silicone hoses come with a lifetime warranty against manufacturing defects.

Q6: Can I use this hose for turbo air intake?

A: Yes, reinforced 4-ply VMQ silicone is perfectly suited for turbo intake systems. It withstands high temperatures and boost pressures.
