Silicone Hose 90° Elbow Ø45/50mm - 250x230mm - 4-Ply VMQ Reinforced

Product overview

This 90° silicone elbow hose is manufactured to precise technical specifications to ensure maximum reliability in high-performance applications. Made of VMQ silicone with 4-ply polyester reinforcement and a 5mm wall thickness, it offers exceptional resistance to thermal and mechanical stress.

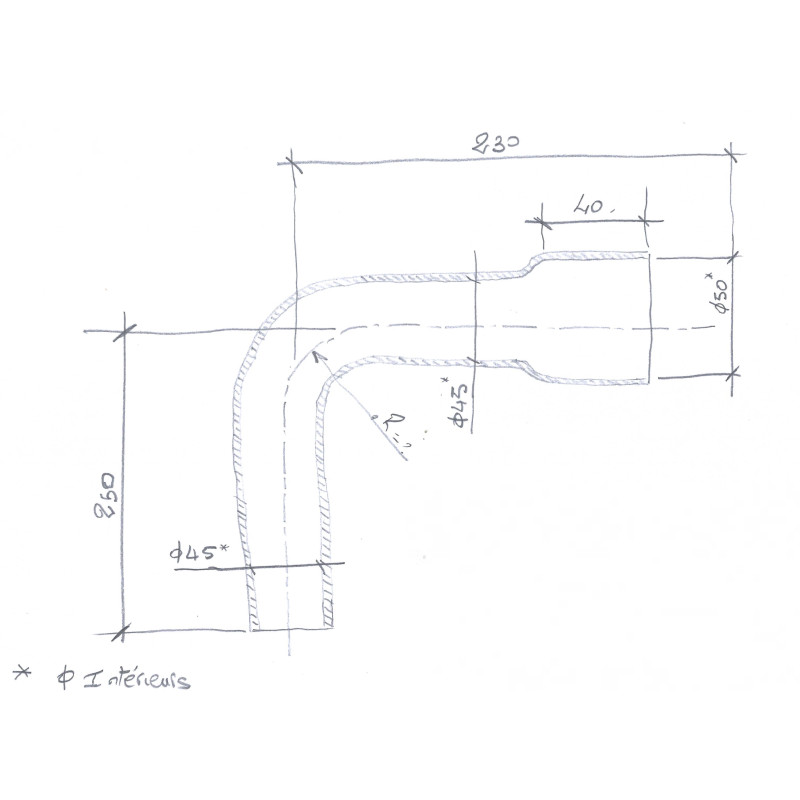

Detailed technical specifications

• Material: High-performance VMQ silicone
• Reinforcement: 4-ply polyester
• Wall thickness: 5mm
• Inlet/outlet diameter: Ø50mm
• Bore diameter: Ø45mm
• Horizontal length: 250mm
• Vertical height: 230mm
• Configuration: 90° elbow shape
• Temperature resistance: -50°C to +180°C continuous
• Pressure resistance: Up to 5 bar

Professional applications

This technical silicone hose is designed for demanding applications requiring a precise 90° elbow geometry. Especially suited for cooling circuits, air intake, and other pressurised systems. The specific geometry allows optimal integration in tight spaces while maintaining an optimal bend radius.

Main technical features

• Superior resistance to extreme temperatures
• Excellent resistance to aging and ozone
• Impervious to automotive fluids (oil, fuel, coolant)
• Flexibility maintained even at low temperatures
• Precise dimensions for installation without modification
• Permanent stock available immediately
• Same-day dispatch for any order placed before 5pm
• Fast GLS delivery 24-48h in France and Europe
• Lifetime warranty on REDOX silicone
• Manufactured to precise technical specifications
• Technical service available for installation advice

REDOX advantages

Frequently asked questions

Q1: Can this hose be used for a cooling circuit?

A: Yes, the 4-ply VMQ silicone with 5mm thickness is perfectly suited for cooling circuits. It withstands temperatures from -50°C to +180°C and pressures up to 5 bar.

Q2: What are the advantages of 4-ply silicone over standard rubber?

A: 4-ply reinforced VMQ silicone offers superior durability, better resistance to extreme temperatures, total imperviousness to fluids, and maintains its flexibility in all conditions.

Q3: Are the dimensions accurate?

A: Yes, dimensions are controlled during manufacturing: 250mm horizontal length, 230mm vertical height, Ø45/50mm. The hose fits without modification.

Q4: Is the product available in stock?

A: Yes, permanent stock. Order before 5pm = same-day dispatch with 24-48h GLS delivery in France and Europe.

Q5: What warranty do you offer?

A: All our REDOX silicone hoses come with a lifetime warranty against manufacturing defects.

Q6: Can the 90° elbow shape be modified?

A: No, this hose is manufactured according to a precise technical plan. The shape is designed to fit specific installation constraints. As silicone is flexible, it can slightly adapt but the basic geometry remains fixed.

Q7: Can I use this hose for turbo air intake?

A: Yes, 4-ply reinforced VMQ silicone is perfectly suited for turbo intake circuits. It withstands high temperatures and boost pressures.
