New product

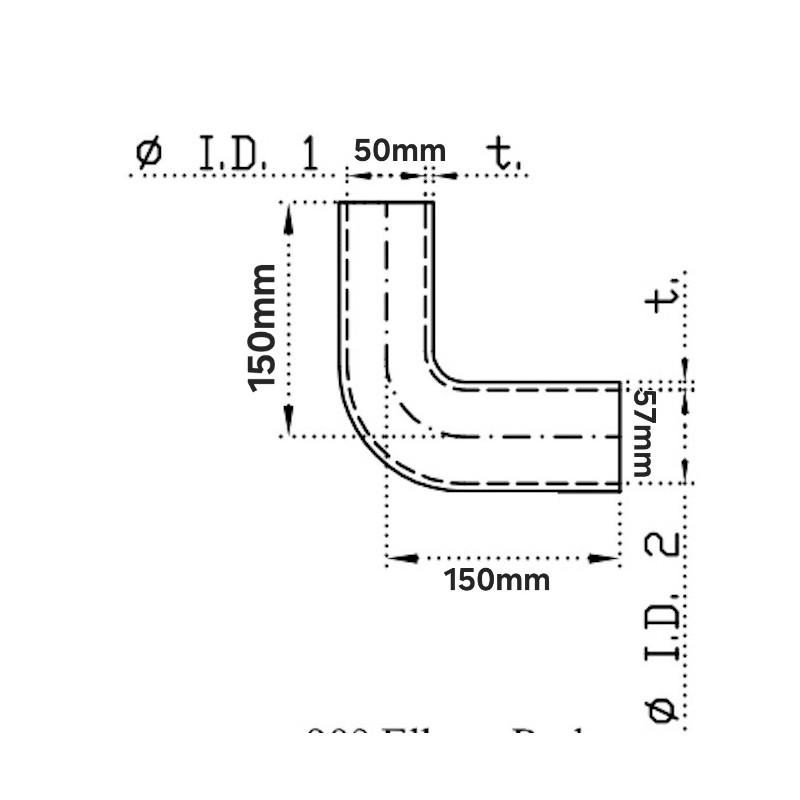

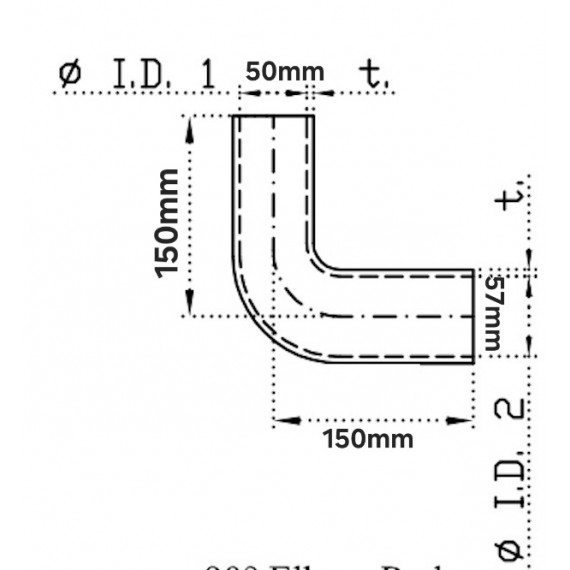

Silicone 90° reducer elbow ID Ø50 to Ø57 mm, length 150 mm with FVMQ fluorosilicone inner liner. Multi-layer VMQ + FVMQ, 5 mm wall, -50/+200 °C, 65-75 Shore A.

More details

29,99 € tax incl.

4 Items

IN STOCK

  • REDOX silicone 90° reducer elbow with diameter reduction from Ø50 mm to Ø57 mm, 150 mm developed length, with FVMQ fluorosilicone inner liner. Standard geometry for turbo-to-intercooler or intake junctions requiring both diameter change and 90° direction change.

    Why FVMQ is mandatory

    The H suffix designates references for circuits exposed to oil vapours: turbo intake, blow-by, crankcase breather, PCV return. Standard VMQ degrades against hydrocarbons — FVMQ inner shows Class A chemical resistance up to +200 °C continuous.

    Technical construction

    • FVMQ inner liner
    • Multi-layer VMQ outer
    • Polyester woven reinforcement
    • 5 mm wall
    • ID 50 to 57 mm, 90° elbow, 150 mm developed length
    • -50/+200 °C continuous
    • 65-75 Shore A hardness

    Typical applications

    Turbo-to-intercooler with both diameter and direction change, intake to throttle body or manifold, custom prototype tubing.

    Delivery

    Reducer supplied alone. W4 stainless clamps in 50 mm and 57 mm recommended. Plug-and-play.
