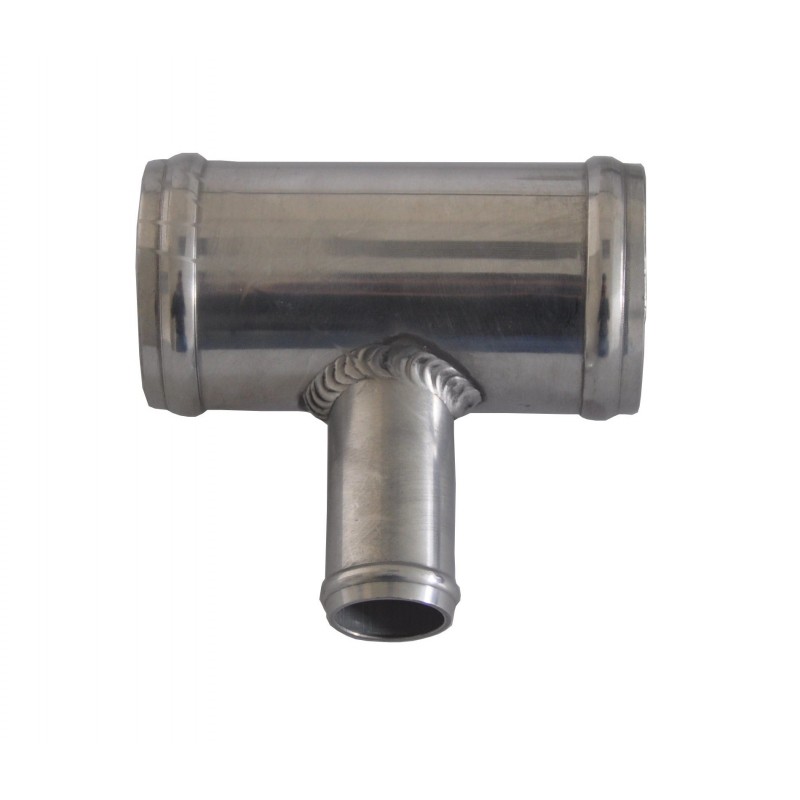

Aluminium weldable T-joiner outer diameter 35 mm length 100 mm branch 25 mm

Aluminium weldable T-joiner Ø35 × L100 mm branch 25 mm

Aluminium alloy joiner with perpendicular T branch, used to integrate a pressure tap, sensor or auxiliary branch on an engine fluid line.

Technical characteristics

• Geometry: main tube + 90° T branch
• Main outer diameter: 35 mm
• Main length: 100 mm
• Branch outer diameter: 25 mm
• Material: weldable aluminium alloy
• Wall thickness: 2,2 mm

Applications

• Coolant circuits with auxiliary tap
• Oil lines with return
• Charge air with pressure tap

Machining and welding

TIG/MIG welding compatible for custom branch angle and position.

Packaging

1 T-joiner in clear plastic bag.
