Silicone T-Piece Hose Ø22mm-Ø15mm - High Performance VMQ 3-Ply

Definition and Technical Specifications

The REDOX T-piece silicone hose is a high-performance connector designed for demanding automotive applications. This hose combines a main diameter of 22mm over a length of 100mm with a 15mm lateral outlet positioned at 60mm, allowing precise branching in fluid circuits.

Manufactured from VMQ silicone (vinyl methyl polysiloxane) reinforced with 3 layers of polyester fabric, this hose offers exceptional resistance to extreme temperatures, high pressures and vibrations. The 4mm wall thickness ensures optimal durability even under the harshest conditions.

Applications and Uses

This T-piece hose is particularly suitable for:

•        Turbocharger boost circuits with vacuum take-off
•        Intercooler setups requiring branch for sensor or blow-off
•        Air intake systems with measurement take-off
•        Cooling circuits with auxiliary branch
•        Breather or crankcase ventilation installations
•        Custom engine tuning setups

Permanent Stock and Fast Delivery

All our REDOX silicone hoses are permanently in stock. Orders placed before 5pm are dispatched the same day from our French warehouse. Thanks to our partnership with GLS, you receive your parcel within 24 to 48 hours across Europe.

This immediate availability avoids waiting times and allows you to quickly complete your tuning or repair projects.

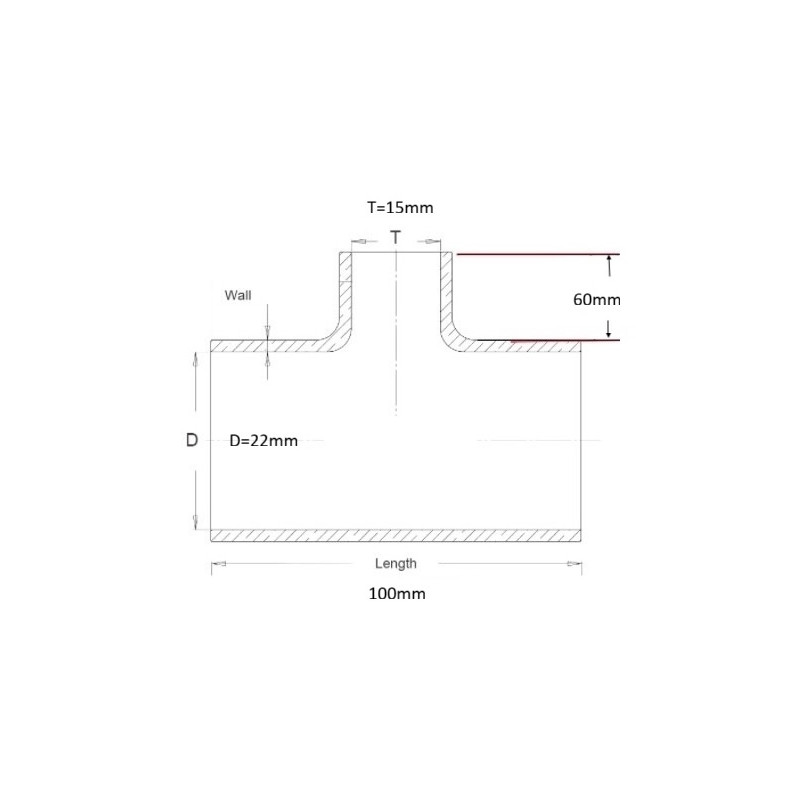

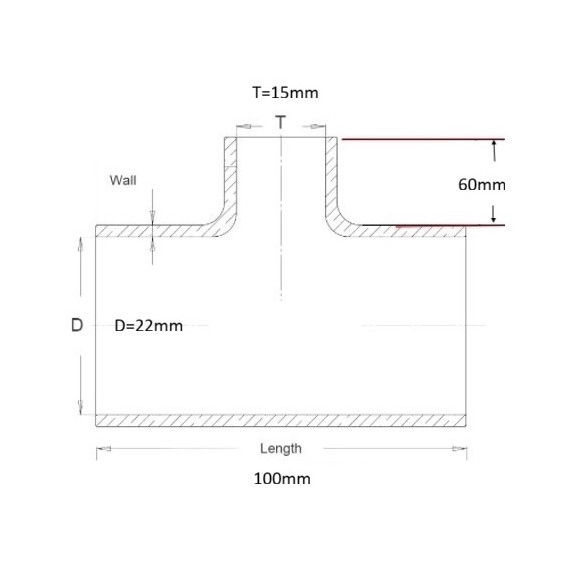

Main Technical Characteristics

•        Main diameter: Ø22mm over 100mm length
•        T-piece diameter: Ø15mm (60mm position)
•        Material: High-quality VMQ silicone
•        Reinforcement: 3-ply polyester fabric
•        Wall thickness: 4mm
•        Temperature range: -50°C to +180°C
•        Available colours: Blue, Black, Red
•        Warranty: Lifetime REDOX
•        Resistance: Oils, fuels, coolant, ozone

FAQ - Frequently Asked Questions

Q1: What is the T-piece on this hose used for?

The Ø15mm T-piece creates an auxiliary outlet on the main circuit. It is commonly used to connect a vacuum take-off hose, install a temperature or pressure sensor, or create a breather in turbo and intercooler systems.

Q2: Can this hose withstand turbocharger pressure?

Yes, the 3-ply polyester reinforcement and 4mm thickness allow the hose to withstand high pressures generated by turbochargers. VMQ silicone maintains its flexibility and sealing even under stress.

Q3: What is the difference between the three colours offered?

The Blue, Black and Red colours are purely aesthetic. All three versions have the same technical characteristics, the same resistance and the same lifetime warranty. The choice is based on your visual preferences and installation aesthetics.

Q4: Is the hose resistant to petrol and engine oils?

VMQ silicone offers excellent resistance to hydrocarbons, engine oils, coolants and fuels. This chemical resistance makes it suitable for all automotive applications, including prolonged contact with these fluids.

Q5: How do I correctly install this T-piece hose?

Use appropriate hose clamps for the Ø22mm and Ø15mm diameters. Position the hose to orient the T-piece towards the connection to be made. Tighten the clamps progressively to ensure sealing without crushing the silicone. Check for leaks before commissioning.

Q6: Can I use this hose on a standard vehicle?

Absolutely. This hose is suitable for both standard vehicles and performance builds. Its temperature range of -50°C to +180°C and 3-ply reinforced construction make it compatible with all types of use, from daily driving to motorsport.

Q7: How long does the REDOX lifetime warranty last?

The REDOX lifetime warranty covers manufacturing and material defects without time limitation. It demonstrates our confidence in the exceptional quality of our high-performance silicone products.

Q8: What is the delivery time for my order?

All orders placed before 5pm are dispatched the same day from our permanent stock. GLS delivery takes 24 to 48 hours across Europe. You receive a tracking number to monitor your parcel in real time.
