Kit of 5 silicone water hoses REDOX - Peugeot 206 S16 2.0 16V 136hp without Modine exchanger (from OPR 09492)

Product Definition and Technical Specifications

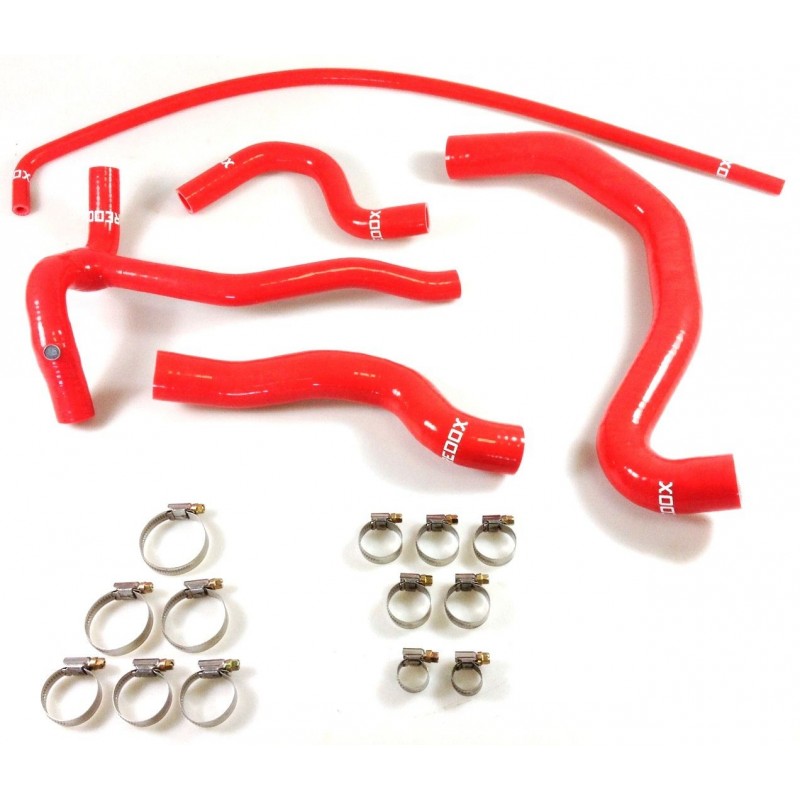

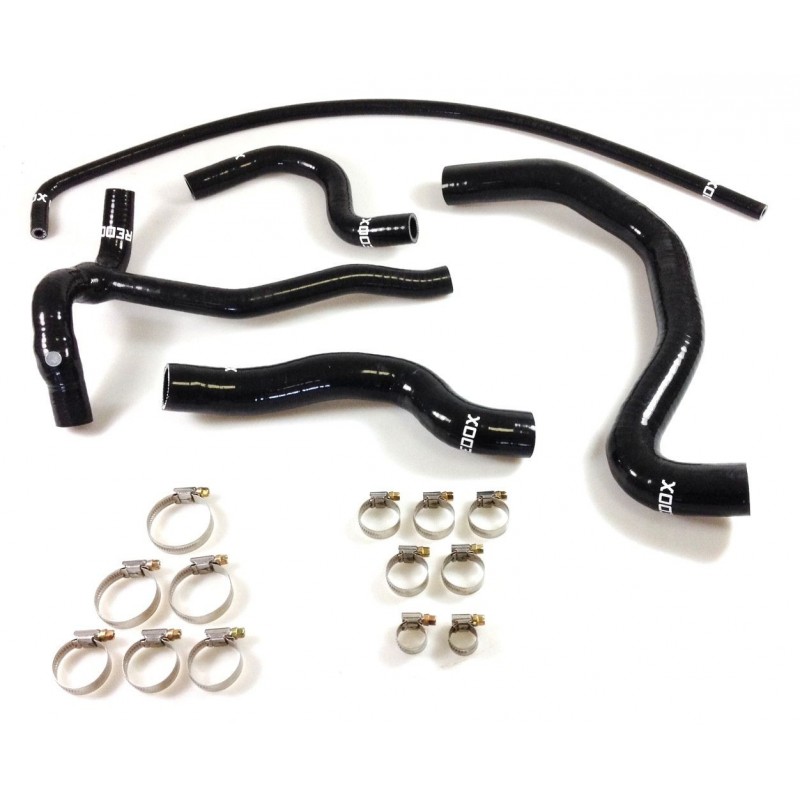

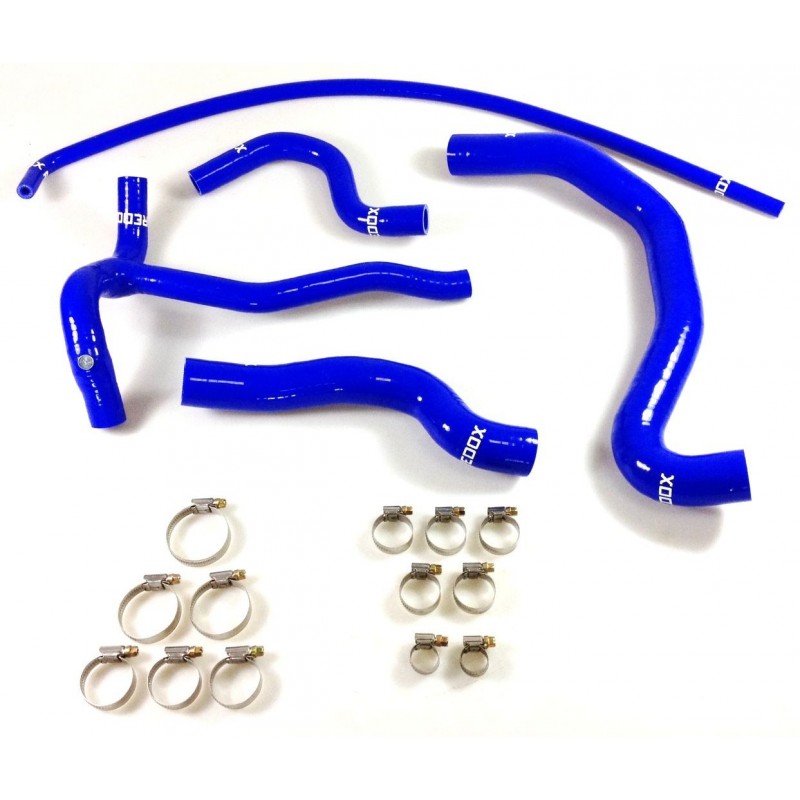

The REDOX kit consists of 5 engine coolant hoses manufactured from multi-layer VMQ (Vinyl Methyl Silicone), selected from 5 VMQ/FVMQ compound variants. Each hose features a 3-ply construction with a 4 mm wall thickness, delivering significantly greater mechanical durability than the original rubber hoses.

Technical specifications:

• Material: Multi-layer VMQ silicone (selected from 5 VMQ/FVMQ grades)
• Construction: 3-ply, 4 mm wall thickness
• Operating temperature: -50°C to +180°C (continuous service)
• Working pressure: 3 bar
• Clamps: Stainless steel clamps included in the kit
• Available colours: black, blue, red
• Fitment: Direct replacement, plug-and-play, no modifications required

Unlike natural rubber, which hardens, cracks and can burst under combined heat and pressure, VMQ silicone retains its elastic and dimensional properties throughout the life of the engine.

Applications and Compatible Models

This kit is developed specifically for the Peugeot 206 fitted with the EW10J4 2.0 16V 136hp engine (engine code RFN), in the configuration without the Modine oil/water heat exchanger, corresponding to vehicles produced from production order OPR 09492 onwards.

Verified compatible versions:

• Peugeot 206 3/5-door (Type 2A/C) — 2.0 S16 136hp, EW10J4 engine
• Peugeot 206 CC (Type 2D) — 2.0 S16 136hp, EW10J4 engine
• Peugeot 206 SW (Type 2E/K) — 2.0 16V 136hp, EW10J4 engine

Important: this kit is exclusively intended for vehicles without the Modine oil/water heat exchanger. Vehicles fitted with the Modine exchanger require a different kit.

OEM Part Numbers of the Original Hoses

The following verified Peugeot original references are known for the coolant hoses of the EW10J4 engine (206 S16):

• 1351.ZE: lower radiator hose — Peugeot OEM reference (verified)
• 1351.ZF: lower radiator hose (variant) — Peugeot OEM reference (verified)

These references can be used to cross-reference the original hoses through Peugeot parts networks. The REDOX kit replaces all 5 coolant circuit hoses for this specific engine variant.

Permanent Stock and Fast Delivery

REDOX maintains a large stock of this kit to ensure immediate availability. Any order placed before 5:00 pm is dispatched on the same day. Delivery covers all of France and Europe within 48 hours.

This level of service keeps vehicle downtime to a minimum, whether the car is used daily, prepared for motorsport, or part of a restoration project.
