STANDARD SILICONE HOSES There are no products in this category.

Subcategories

•

  Elbow 45°

  REDOX Silicone 45° Elbows - 32 References - Diameters 0.39" to 5" - Permanent Stock

  Complete range silicone 45 degree elbows REDOX for automotive and industrial circuits. VMQ silicone with polyester fabric reinforcement, resistant from -76°F to 356°F. 32 references available permanent stock covering all diameters 0.39" to 5".

  Comprehensive diameter range available: 0.39", 0.43", 0.51", 0.63", 0.75", 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.65", 1.77", 1.89", 2", 2.13", 2.24", 2.36", 2.48", 2.56", 2.68", 2.76", 3", 3.15", 3.27", 3.35", 3.54", 3.74", 4", 5". Standard length 3.94" for all diameters.

  Technical specifications: VMQ silicone material and polyester fabric support. Construction 3-ply small diameters, 4-ply medium diameters, 5-ply large diameters. Resists coolant fluids, oil vapors, fuel vapors, turbo boost air. Operating temperature continuous -76°F to 356°F.

  45° elbow applications: Slight deviations cooling circuits. Progressive direction changes air intake. Turbo connections with moderate angle. Obstacle bypass engine compartment. Flow optimization with minimum pressure losses.

  Product advantages: 45° angle ideal smooth transitions. Easy installation with standard clamps. Permanent shape retention under temperature. Superior durability versus original rubber. Available colors blue, black, red. New condition, REDOX Silicone Universal brand.

  Stock and availability: 32 references permanently stocked. Mention "AVAILABLE IN STOCK" main references. Same day shipping orders before 5 PM.

  45° Elbows FAQ - Frequently Asked Questions

  Why choose a 45° elbow? 45° angle allows progressive deviations minimizing pressure losses. Ideal for bypassing obstacles without creating turbulence. Smooth transitions preserve laminar flow. Less constraining for hose than tighter angle. Optimal solution when space allows avoiding right angles.

  Are all diameters available? Yes, 32 references cover diameters 0.39" to 5". Most complete market range: small diameters vacuum/breather (0.39-0.51"), medium diameters water/air (0.63-2"), large diameters turbo/intake (2.13-5"). Permanent stock all references.

  What is the standard length? Length 3.94" standard for all diameters, measured elbow center to extremity. Length sufficient majority applications. For specific needs different lengths, possibility combine with straight couplers or meter hoses.

  How is ply count determined? Adapted construction per diameter: generally 3-ply up to 1.38", 4-ply 1.5-2.36", 5-ply beyond 2.48". Progressive thickness ensures optimal pressure resistance while maintaining flexibility. Precise information available individual product sheets.

  Is 45° elbow suitable for turbo? Perfectly suited turbo circuits low/medium pressure. Moderate angle limits wall constraints. Resists high temperatures turbo outlet (-76°F to 356°F). For high pressure applications >43 PSI, reinforced versions available.

  What difference with rubber elbow? Rubber elbow: permanent deformation, hardening, cracking after 3-5 years. REDOX VMQ silicone elbow: shape and flexibility retention 15+ years, UV/ozone resistance, extended temperature range, preserved aesthetics.

  Do colors have technical impact? No, colors blue, black, red purely aesthetic. Mechanical and thermal properties identical. Allows engine bay personalization, circuit identification, racing appearance. Mass-dyed silicone ensures UV color stability.

  Can multiple 45° elbows be combined? Yes but avoid direct succession (cumulative pressure losses). Insert straight sections between elbows. For total angles >45°, prefer higher angle elbows available other REDOX ranges (90°, 135°, 180° separate references).

•

  Elbow 90°

  REDOX Silicone 90° Elbows - 52 References - Diameters 0.39" to 6" - Lengths 3.94" to 11.8"

  Complete range silicone 90 degree elbows REDOX for automotive and industrial circuits. VMQ silicone with polyester fabric reinforcement, resistant from -76°F to 356°F. 52 references available permanent stock, multiple lengths adapted specific needs.

  Comprehensive diameter range available: 0.39", 0.43", 0.51", 0.63", 0.75", 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.61", 1.65", 1.77", 1.89", 2", 2.13", 2.24", 2.36", 2.48", 2.56", 2.68", 2.76", 3", 3.15", 3.27", 3.35", 3.54", 3.74", 3.94", 4", 4.92", 6".

  Multiple lengths available: Standard 3.94" majority diameters. Extended options: 4.92" (2", 2.13"), 5.9" (0.63", 1.38", 1.89", 2"), 7.87" (0.63", 0.87", 1.26", 1.38", 1.57", 2", 2.24", 2.76"), 9.84" (2.36"), 11.8" (0.63").

  Technical specifications: VMQ silicone material and polyester fabric support. Construction 3-4-5 ply per diameters. Resists coolant fluids, oil vapors, fuel vapors, turbo boost air. Operating temperature continuous -76°F to 356°F.

  90° elbow applications: Right angles cooling circuits. Perpendicular connections intake/exhaust. Clear direction changes turbo-intercooler. Engine bay space optimization. Compact solutions restricted spaces.

  Product advantages: 52 references for all configurations. Multiple lengths maximum adaptability. Easy installation standard clamps. Permanent shape retention. New condition, REDOX Silicone Universal brand.

  90° Elbows FAQ - Frequently Asked Questions

  Why 52 references of 90° elbows? Most extensive market range with diameters 0.39" to 6". Multiple lengths per diameter allow precise adaptation to available space. Covers miniature applications (vacuum 0.39") to large industrial collectors (6").

  Which lengths are available? Standard length 3.94" not specified in designation. Extended lengths 4.92", 5.9", 7.87" per diameters. Long versions up to 11.8" for specific applications. Length measured elbow center to extremity each leg.

  How to choose the right length? Standard length 3.94" suits majority installations. Lengths 5.9-7.87" for important obstacle bypasses. Length 9.84-11.8" for large distances between connections. Measure available space before ordering.

  Is 90° elbow suitable for turbo? Perfectly suited turbo connections requiring right angle. Resists high temperatures (-76°F to 356°F) and boost pressures. Reinforced construction large diameters. Avoid successive 90° elbows (important pressure losses).

  What difference with 45° elbow? 90° elbow: clear right angle, perpendicular direction changes, more important pressure losses. 45° elbow: progressive transition, reduced pressure losses. Choose per circuit configuration and available space.

  How is ply count determined? Adapted construction diameter: 3-ply small diameters up to 1.38", 4-ply medium diameters 1.5-2.36", 5-ply large diameters >2.48". Progressive thickness ensures optimal resistance maintaining connection flexibility.

  Are large diameters reinforced? Yes, diameters >2.76" reinforced 5-ply construction. Diameter 6" extra-robust version industrial applications. High-tenacity polyester support. Optimized pressure and vacuum resistance.

  Can bend radius be reduced? Not recommended. Bend radius calculated to avoid kinking and flow restriction. Forcing tighter radius creates weak point and turbulence. For very restricted spaces, prefer combination two 45° elbows.

•

  Elbow 135°

  REDOX Silicone 135° Elbows - 32 References - Diameters 0.39" to 4" - Optimal Obtuse Angle

  Complete range silicone 135 degree elbows REDOX for automotive and industrial circuits. VMQ silicone with polyester fabric reinforcement, resistant from -76°F to 356°F. 32 references available including 135° reducer for diameter transitions with direction change.

  Available diameter range: 0.39", 0.43", 0.51", 0.63", 0.75", 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.65", 1.77", 1.89", 2", 2.13", 2.24", 2.36", 2.48", 2.76", 3", 3.15", 3.27", 3.35", 3.54", 3.74", 4". 135° reducer available 2.24-2.76".

  Technical specifications: VMQ silicone material and polyester fabric support. Construction 3-ply small diameters, 4-ply medium diameters, 5-ply large diameters (4"). Standard length 3.94", version 7.87" available diameter 2.36". Operating temperature continuous -76°F to 356°F.

  135° elbow applications: Obtuse angle ideal smooth transitions with marked direction change. Less restrictive than 90°, more directive than 45°. Perfect obstacle bypasses maintaining flow. Turbo applications requiring intermediate angle. Flow optimization complex circuits.

  Product advantages: 135° angle optimal balance between direction change and pressure losses. Easy installation without excessive constraints. Generous bend radius preserves hose integrity. New condition, REDOX Silicone Universal brand. Colors blue, black, red available.

  135° Elbows FAQ - Frequently Asked Questions

  Why choose a 135° elbow? 135° angle offers ideal compromise between significant direction change and flow preservation. Gentler than 90° (less pressure losses), more marked than 45° (clear direction change). Perfect when space allows avoiding right angle while needing important turn.

  What is the diameter range? 32 references cover diameters 0.39" to 4". Including small diameters vacuum circuits (0.39-0.51"), medium diameters cooling/air (0.63-2.36"), large diameters turbo/intake (2.48-4"). Unique 135° reducer 2.24-2.76" combines diameter transition and direction change.

  What is the 135° reducer? Special reference 2.24-2.76" allowing diameter reduction with 135° direction change in one piece. Avoids combination straight reducer + separate elbow. Compact solution, fewer connections, better flow. Ideal limited space configurations.

  Are there different lengths? Standard length 3.94" for majority references, measured elbow center to extremity. Long version 7.87" available diameter 2.36" for applications requiring extended reach. Other diameters possibility custom order specific lengths.

  How is ply count determined? Progressive construction: 3-ply diameters up to 1.38", 4-ply 1.5-2.36", 5-ply 2.48" and more. 4" elbow specifically 5-ply reinforced for high pressure applications. Adapted thickness ensures optimal resistance maintaining flexibility.

  Is 135° elbow suitable for turbo? Excellent for turbo circuits requiring direction change without excessive restriction. 135° angle preserves air velocity better than 90°. Resists high temperatures turbo outlet. Reinforced construction large diameters supports high boost pressures.

  What difference with other angles? 45°: very smooth transition, minimal direction change. 90°: clear right angle, important pressure losses. 135°: optimal compromise, marked direction change with preserved flow. 180°: complete U-turn. Choose per spatial configuration and flow requirements.

  Are all colors available? Yes, three standard colors: blue, black, red for all diameters. Aesthetic choice without performance impact. Allows circuit coding, engine bay personalization. Mass-dyed silicone ensures color stability UV and temperature exposure.

•

  Elbow 180°

  REDOX Silicone 180° Elbows - U-Turn Configuration - Diameters 0.39" to 4" - Radiator Return Applications

  Range silicone 180 degree elbows REDOX for tight returns automotive and industrial circuits. VMQ silicone with polyester fabric reinforcement, resistant from -76°F to 356°F. Compact U-turn configuration ideal radiator returns and circuits requiring direction reversal.

  Available diameters stock: 0.39", 0.51", 0.63", 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.65", 1.77", 1.89", 2", 2.13", 2.24", 2.36", 2.48", 2.56", 2.68", 2.76", 3", 3.15", 3.27", 3.35", 3.54", 3.74", 4".

  Adapted lengths diameters: Standard 3.94" small diameters (0.39-2"). Length 4.92" medium/large diameters (2.36", 3", 3.15"). Long version 5.9" available diameter 2.13". Optimized dimensions for minimal space with preserved bend radius.

  Technical specifications: VMQ silicone material and polyester fabric support. Construction 3-ply (0.16" wall) small diameters, 4-ply (0.20") medium diameters, 5-ply (0.24") large diameters. Operating temperature -76°F to 356°F continuous.

  180° elbow applications: Compact radiator returns. Direction reversal cooling circuits. Heat exchanger serpentine connections. Return loops hydraulic circuits. Space-saving solutions tight engine compartment.

  Product advantages: Ultra-compact U-turn configuration. Optimized bend radius avoids kinking. Simple installation two clamps. Permanent shape retention high temperature. Colors blue, black, red. New condition, REDOX Silicone Universal brand.

  180° Elbows FAQ - Frequently Asked Questions

  Why use a 180° elbow? 180° elbow allows complete direction reversal in minimal space. Essential radiator returns, serpentine connections, circuits requiring tight U-turn. More compact solution than two assembled 90° elbows. Maintains optimal flow despite extreme curvature.

  Which lengths are available? Standard length 3.94" for diameters 0.39-2", sufficient majority applications. Length 4.92" for diameters 2.36-3.15", necessary wider bend radius. Version 5.9" available 2.13" for specific applications. Length measured elbow center to extremity each leg.

  How to avoid elbow kinking? REDOX calculated bend radius avoids self-kinking. Important respect recommended clamp diameters. Never force installation. Position clamps at extremities, not on curvature. Central support if important vibrations. Check absence hot parts contact.

  Does 180° elbow create pressure losses? Yes, 180° configuration generates more important pressure losses than other angles. REDOX design minimizes impact with optimized internal profile. For high performance applications, consider increasing diameter or using two spaced 90° elbows.

  Which diameters are most used? Diameters 0.63-0.98" popular auxiliary cooling circuits. 1.26-1.77" frequent main radiator returns. 2-3" used large engines, industrial applications. 3.15-4" special applications, competition, marine.

  Reinforced construction large diameters? Yes, diameters >2.36" construction 4-ply (0.20" wall). Diameters >3.15" version 5-ply extra-robust. High-tenacity polyester support. Resists high pressures/vacuums, continuous vibrations, repeated thermal cycles.

  Compatible modern coolants? Perfectly compatible all coolants: water, glycol, anticorrosion additives. Resists acid/base pH modern fluids. No degradation permanent fluid contact up to 356°F. Lifespan over 15 years normal use.

  Applications other than automotive? Numerous industrial applications: machine tools, hydraulic groups, compressors, heat exchangers. Marine: boat engine cooling circuits. Agriculture: tractors, harvesters. Generator sets, refrigeration installations.

•

  Couplers Straight

  REDOX straight silicone hoses form the fundamental element for reliable connections in all high-performance automotive circuits. Manufactured from multi-layer polyester-reinforced VMQ silicone, these hoses offer a universal solution for direct connections without angles or deformation. With 51 references available, diameters from 6.5mm to 152mm and multiple lengths from 50mm up to 3 metres, our range covers all automotive, agricultural and industrial requirements. Perfect resistance -40°C to +180°C, supported pressure 5 bar, complete compatibility with cooling fluids, oil vapors and turbo boost.

  Exceptional permanent stock guaranteeing immediate availability all references. Orders before 5pm systematically shipped same day, GLS delivery 24-48 hours throughout Europe. This logistics responsiveness meets mechanical emergencies, restoration projects and engine preparations requiring rapid supply.

  Infinite applications include intercooler connections, radiator-engine links, intake connections, custom cooling circuits, emergency repairs and bespoke creations. Compatible with all European Japanese American vehicles, from city cars to heavy trucks, including agricultural applications Massey Ferguson, New Holland, JCB and construction equipment Caterpillar, Kubota, Yanmar. VMQ silicone construction guarantees optimal flexibility facilitating installation, exceptional durability exceeding 10 years standard use and performance maintenance under extreme competition conditions. Volume discount pricing, detailed technical specifications enabling precise selection according to existing pipe outer diameter and specific installation constraints. Professional-grade components trusted by racing teams, restoration specialists and performance tuning professionals worldwide.

  FAQ

  Q1: How do I choose the right straight hose length for my application? A: Standard 76mm length suits most connections. For tight spaces use 50mm. Long connections require 100-150mm. Complex circuits can use 300-500mm versions or cut our 3-metre hose. Plan minimum 20mm engagement under clamp each end for optimal sealing.

  Q2: What's the difference between 3-ply and 4-ply wall thickness? A: Our hoses up to 38mm diameter are 3-ply (3 polyester layers, thickness 4.3mm). From 41mm onwards, 4-ply construction (4 layers, thickness 5mm) for increased strength. 4-ply supports higher pressures and better suits high-pressure turbo applications or large flow rates.

  Q3: Can I use a straight hose as fuel or oil line? A: No, our standard VMQ silicone hoses resist vapors but not permanent fuel/oil contact. For these applications order our specific FKM/Viton fuel hoses or consult our custom service. VMQ perfect for water, air, intercooler but unsuitable for fuel circuits.

  Q4: How do I connect two pipes with slightly different diameters? A: If difference under 2mm, silicone adapts with appropriate tightening. For larger gaps use our dedicated reducer hoses. Never force straight hose onto unsuitable diameter, risk of tearing or leakage. Precisely measure pipe outer diameter before ordering.

  Q5: Do your hoses resist modern long-life coolants? A: Fully compatible with all coolants G11, G12, G13, OAT/HOAT/Si-OAT formulations. Exceptional chemical resistance, no degradation with modern anticorrosion additives. Tests validated 200,000km with manufacturer fluids. Flushing recommended when changing fluid type.

  Q6: How many 60mm hoses length 100mm do you stock? A: Permanent stock minimum 20 units common references like 60x100mm. Popular diameters 45-76mm always immediately available. For orders exceeding 50 identical pieces, 48h pre-order enables optimal preparation. Continuous replenishment guarantees availability 365 days/year.

  Q7: How do I cut your 3-metre hose cleanly? A: Use new craft knife or fine hacksaw. Mark complete circumference before cutting for straightness. Lightly deburr inside after cutting. For multiple identical cuts make template. Avoid scissors which crush walls. Lubricate blade for clean cut.

•

  T Piece Silicone Hose

  REDOX T-piece branch hoses provide the ideal solution for creating tapping points and branches in high-performance automotive circuits. Manufactured from multi-layer reinforced VMQ silicone, these hoses integrate a perpendicular side outlet enabling addition of sensors, bleeds, catch tanks or auxiliary circuits without major structural modifications. Available in main diameters from 12mm to 76mm with standardized 25mm branches, they perfectly resist temperatures -40°C to +180°C and pressures up to 5 bar in most demanding cooling, turbo and intake circuits.

  Our permanent stock of 22 references guarantees immediate availability for all projects. Orders placed before 5pm ship same day, GLS delivery assured within 24-48 hours throughout Europe. This logistics responsiveness meets urgent requirements of tuners, professional mechanics and enthusiasts during engine modifications.

  Preferred applications include temperature sensor installation in cooling circuits, turbo wastegate bypass creation, oil vapor catch can addition, auxiliary expansion tank connections and pressure gauge integration. Compatible with Subaru Impreza WRX STI, Ford Focus RS, Volkswagen GTI, BMW M-Series and numerous other European and Japanese sports vehicles. VMQ silicone construction with polyester reinforcement guarantees perfect sealing at T-junctions, exceptional durability against chemical aggression and performance maintenance under extreme conditions. Our transparent pricing includes detailed dimensions facilitating optimal selection according to specific configuration of your custom installation. These professional-grade components excel in demanding motorsport applications where reliability and precise fluid management determine success.

  FAQ

  Q1: How do I choose between a T-piece and Y-connector for my circuit? A: T-piece creates a perpendicular 90° outlet, ideal for sensors, bleeds or auxiliary circuits with reduced flow. Y-connector divides flow into two equal 45° branches. Use T for sampling or minor additions, Y for balanced main flow distribution.

  Q2: What branch size for temperature sensor installation? A: Our standard 25mm branches perfectly suit M12-M14 temperature sensors. For larger sensors or flow meters, opt for our custom T-pieces with 32-38mm branches. Branch should never exceed 50% of main diameter to avoid flow disruptions.

  Q3: Can I use a T-piece on high-pressure turbo circuit? A: Yes, our VMQ silicone T-pieces support 5 bar continuously, sufficient for petrol turbo circuits up to 2.5 bar and diesel 3 bar. For higher pressures or extreme racing applications, reinforce with double clamps and regularly inspect T-junction.

  Q4: How do I correctly install the T-piece to avoid leaks? A: Position branch upward or sideways, never downward (liquid accumulation). Use silicone lubricant on three connections. Tighten main clamp pressure-side first, then branch, finally outlet. Minimum distance 15mm between clamp and T-junction. Installation 30-45 minutes.

  Q5: Does the T-piece reduce my circuit performance? A: Negligible impact with correct usage. Pressure loss under 3% with closed branch or small flow extraction. For critical high-performance applications, place T after exchanger/radiator rather than pump/turbo outlet to minimize disruptions.

  Q6: Are your T-pieces compatible with modern coolants? A: Perfectly compatible with all coolants G11 to G13, including hybrid OAT/HOAT formulations. Also resist engine oil vapors, fuel vapors but not recommended for permanent direct fuel contact (use FKM/Viton for petrol).

  Q7: Can I order T-piece with different branch diameter than standard 25mm? A: Standard stock offers 25mm branches covering 90% of needs. For special branches 6-50mm, consult our custom service. Lead time 6 weeks, minimum order 1 piece. Surcharge approximately 30% versus standard.

•

  Silicone hose 1 meter

  REDOX Silicone Hoses 1 Meter - Pre-cut Lengths 39.4" - Diameters 0.24" to 20"

  Complete range silicone hoses pre-cut 1 meter (39.4 inches) REDOX. VMQ silicone reinforced polyester fabric, resistant from -76°F to 356°F. Standardized lengths 39.4" ready to use, diameters up to 20" for heavy industrial applications.

  Diameter range available: Small diameters: 0.24", 0.31", 0.39", 0.43", 0.51", 0.63", 0.75". Medium diameters: 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.65", 1.77", 1.89", 2", 2.13", 2.24", 2.36", 2.48", 2.56", 2.76", 3", 3.15", 3.27", 3.54", 3.74". Large diameters: 4", 4.33", 4.92", 6", 7.87", 9.84", 11.8", 15.75", 19.7" (500mm).

  Technical specifications: Fixed length: 39.4" factory cut. VMQ silicone material multilayer polyester fabric. Construction 3-ply diameters <1", 4-ply 1-2.36", 5-ply 2.36-6", 6-8 ply >6". Resists coolant fluids, oil/fuel vapors, turbo boost. Temperature -76°F to 356°F.

  1 meter hose applications: Straight sections automotive/truck circuits. Industrial large diameter connections. Industrial ventilation up to 20". Machine tool cooling circuits. Marine/agricultural applications. Base for cutting custom sections.

  Special versions: Standard VMQ general applications. MEGAFLEX metal spiral superior flexibility. Lengths 6.6-9.8-13ft available. Custom-made 6 weeks lead time.

  Advantages: Extended range 0.24-20". Standardized length 39.4". New condition, REDOX Silicone Universal brand.

  1 Meter Hoses FAQ - Frequently Asked Questions

  What maximum diameter available? REDOX range up to 20 inches (500mm) inner diameter. Diameters 0.24-4" permanent stock. Diameters 4-8" variable availability. Diameters 10-20" on order or limited stock. Heavy industrial applications, large volume ventilation, special circuits.

  Are very large diameters reinforced? Yes, progressive construction: 3-ply up to 1", 4-ply 1-2.36", 5-ply 2.36-6", 6-ply 6-12", up to 8-ply diameter 20". High-tenacity polyester reinforcement. Optimized pressure/vacuum resistance. Wall thickness increases with diameter.

  Applications diameters >8"? Industrial ventilation production halls. Smoke/dust extraction. Large machine cooling circuits. Marine main engine applications. Industrial generator sets. Wind turbine cooling systems. Tunnel ventilation.

  Weight large diameter hoses? Diameter 4": approximately 3.3lbs/meter. Diameter 8": approximately 7.7lbs/meter. Diameter 12": approximately 13.2lbs/meter. Diameter 20": approximately 26.5lbs/meter. Variable weight per ply count. Adapted transport diameters >8".

  Clamps for diameters >4"? Reinforced industrial clamps mandatory. Band width minimum 0.79" diameters 4-8". Special clamps 0.98-1.18" width diameters >8". Controlled torque tightening imperative. REDOX offers adapted clamps all dimensions.

  Bend radius large diameters? Minimum radius = 4x diameter for >4". Example: diameter 8" = radius 32" minimum. Diameter 20" = radius 80" minimum. Use supports if bends necessary. MEGAFLEX version improves flexibility 30%.

  Storage hoses diameter 20"? Horizontal position supported entire length. Avoid oval deformation vertical storage. Room temperature, UV shelter. Periodic rotation if long storage. Special packaging transport. Handling 2 persons minimum.

  Lead time large diameters? Diameters 0.24-4": stock, shipping 24-48h. Diameters 4-8": generally 3-5 days. Diameters 10-20": 2-3 weeks if not stock. Custom-made all diameters: 6 weeks. Special transport >12".

•

  Silicone hose 2-3-4 meters

  REDOX Silicone Hoses 2-3-4 Meters - 24 References Extended Lengths - Diameters 0.31" to 4.92"

  Range silicone hoses extended lengths REDOX for circuits requiring large straight sections. VMQ silicone reinforced polyester fabric, resistant from -76°F to 356°F. Factory pre-cut lengths 6.6ft, 9.8ft and 13ft, ideal long-distance connections without intermediate coupling.

  24 references available: 2 meter hoses: 0.31", 0.39", 0.63", 0.75", 4.92" (5 references). 3 meter hoses: 0.75", 1.26" (2 references). 4 meter hoses: 0.31", 0.39", 0.51", 0.63", 0.75", 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.65", 1.77", 1.89" (16 references).

  Technical specifications: VMQ silicone material and polyester fabric support. Reinforced construction adapted to diameters. Resists coolant fluids, oil vapors, fuel vapors, turbo boost. Operating temperature -76°F to 356°F continuous.

  Extended length applications: ICE to electric vehicle conversion: battery and electric motor cooling. Buses and coaches: long-distance cooling circuits. Trucks: chassis-engine connections without junction. Commercial vehicles: extended cooling systems. Industrial applications: machine tools, generator sets. Marine: engine cooling circuits. Agriculture: hybrid and electric equipment.

  Product advantages: Reduced connection points = fewer leak risks. Fast installation, fewer clamps needed. Optimized flow without junction turbulence. New condition, REDOX Silicone Universal brand.

  2-3-4 Meter Hoses FAQ - Frequently Asked Questions

  Why choose extended lengths? Lengths 6.6-9.8-13ft eliminate intermediate junctions. Fewer couplings = fewer leak risks. Faster installation with fewer clamps. Ideal long-distance circuits commercial vehicles, buses, trucks. Particularly suited electric conversions requiring extended battery connections.

  Which diameters are available? 6.6ft: 5 diameters from 0.31" to 4.92". 9.8ft: only 0.75" and 1.26". 13ft: complete range 16 diameters from 0.31" to 1.89". Diameter 4.92" only available in 6.6ft. Majority references concentrated on 13ft length.

  Electric conversion applications? Perfectly suited battery cooling electrified vehicles. Lengths 9.8-13ft essential distributed battery connections (roof/floor). Compatible battery cooling fluids. Diameters 0.63-1.26" commonly used battery cooling circuits. Applications electric buses, retrofitted trucks, electrified construction equipment.

  Can these hoses be cut? Yes, hoses can be cut to desired length. Use tube cutter or cutter for clean perpendicular cut. Allows creating multiple sections from one length. Keep offcuts for future repairs.

  Difference with 3.3ft hoses? Same technical characteristics (VMQ, -76°F to 356°F). Advantage: fewer connections over long distances. Savings versus multiple 3.3ft purchase + junction sleeves. Significant installation time savings.

  Transport 13ft lengths? Rolled packaging for transport. Standard diameters normal shipping. Large diameters may require special packaging. Progressive unrolling during installation avoids twist.

  Fluid resistance? Compatible all coolant types. Resists oil and fuel vapors. Not compatible permanent liquid fuel contact. For fuel applications, see specific hydrocarbon range.

  Stock and availability? 24 references maintained in stock. Mention "last pieces available" = low stock, order quickly. 13ft length = best availability (16 references).

•

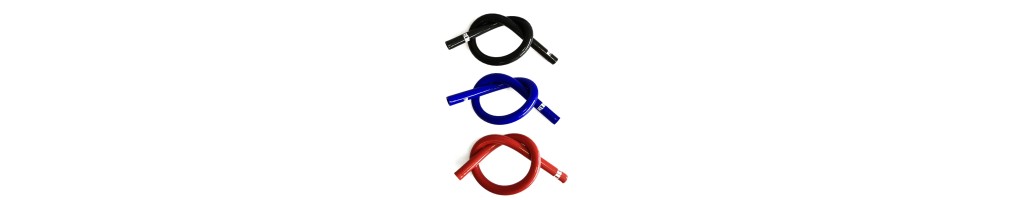

  Hoses MEGAFLEX

  REDOX MEGAFLEX Silicone Hoses 1 Meter - Metal Spiral Technology - 16 Products

  Revolutionary MEGAFLEX hose range REDOX with integrated metal spiral for exceptional flexibility. Unique construction VMQ silicone with metal spiral between polyester layers, allowing extreme bending without kinking. Standard length 39.4", diameters 0.51" to 2" available.

  16 references available: Standard diameters: 0.51", 0.63", 0.75", 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.77", 1.89", 2". SUPERFLEX version 1.18" available. Special oil/fuel model diameter 0.63" for fuel applications.

  Exclusive MEGAFLEX technology: Metal spiral embedded between polyester layers. Significantly superior flexibility versus standard hoses. Kink-free bending even tight angles. Optimal inner section maintained under stress. Improved fluid circulation complex circuits.

  Preferred MEGAFLEX applications: Circuits requiring multiple tight bends. Confined engine compartment installations. Connections high vibration requiring flexibility. Marine applications constant movement. Prototyping circuits variable configuration. Replacement problematic rigid original hoses.

  Decisive advantages: Elimination kink risks extreme bends. Facilitated installation difficult passages. Extended lifespan repeated flex zones. Constant flow despite bends. Compatible all standard coolant fluids. Oil/fuel version available specific applications.

  MEGAFLEX Hoses FAQ - Technical Questions

  What difference with standard silicone hoses? MEGAFLEX integrates metal spiral between polyester layers, absent standard hoses. Flexibility increased 300% versus classic VMQ. Minimum bend radius halved. Allows angles impossible normal hose. Ideal complex configurations multiple tight turns.

  Are all diameters available? 14 standard diameters 0.51-2" available. SUPERFLEX version exclusively 1.18". Oil/fuel model only 0.63". Range covers majority common automotive applications. Diameters >2" not available MEGAFLEX (sufficient rigidity standard).

  Compatible oil/fuel applications? Specific 0.63" model compatible oil/fuel available. Adapted construction hydrocarbon resistance. Other diameters standard version coolants only. Check fluid compatibility before installation.

  Can 1 meter length be cut? Yes, cutting possible desired length like standard hoses. Caution not damage metal spiral cutting. Use rotary tube cutter preferably. Deburr carefully after cutting.

  Applications where MEGAFLEX essential? Turbo conversions limited space. Intercooler circuits winding paths. Marine applications vibrations/movements. Competition vehicles frequent configuration changes. Replacement brittle original hoses aging.

  Temperature resistance identical? Temperature range -76°F to 356°F maintained. Stainless steel spiral corrosion resistant. Durability identical normal conditions. Fatigue tests 100,000 flex cycles validated.

  Weight increase with spiral? Additional weight approximately 15-20% versus standard. Negligible automotive applications. Largely compensated by flexibility advantages. Structure remains supple easy handling.

  Minimum bend radius? Minimum radius 1.5x hose diameter versus 3x standard. Example: 1.18" MEGAFLEX = 1.77" minimum radius. Allows impossible configurations classic hose. Optimal flow tight angles maintained.

•

  Coil Vacuum Hose

  REDOX vacuum hoses are specially designed for pneumatic control circuits and automotive vacuum systems. Manufactured from high-quality VMQ silicone, these small-bore hoses ensure reliable transmission of vacuum and pressure signals in engine management systems. Available in 4mm and 6mm diameters, offered in pre-cut format for quick and precise installation. Three color choices - blue, black and red - enable easy circuit identification and aesthetic engine bay customization.

  Our very large stock guarantees permanent availability of these essential references. Orders placed before 5pm ship the same day, with GLS delivery within 48 hours maximum throughout Europe. This logistics responsiveness meets urgent needs of mechanics, tuners and automotive maintenance professionals requiring reliable solutions quickly.

  Main applications: turbo wastegate, pneumatic actuators, pressure regulators, emission control systems, measuring instruments and gauges. VMQ silicone ensures excellent resistance to temperature extremes, hydrocarbons and aging. A special 10-25mm reducer is also available for diameter adaptations in vacuum circuits. Durable solution advantageously replacing original rubber hoses prone to hardening and cracking.

  FAQ

  Q1: What's the difference between vacuum hose and regular hose? A: Vacuum hoses are designed to resist vacuum (negative pressure) not just positive pressure. Their VMQ silicone construction prevents collapse under vacuum. Diameters are smaller (4-6mm) as they transmit pneumatic signals rather than fluid volumes.

  Q2: Why do you offer three different colors? A: Colors enable easy identification of different circuits in the engine bay. Blue is often used for boost circuits, red for main circuits, black for discreet or original appearance. All offer identical technical performance.

  Q3: Are pre-cut hoses available in different lengths? A: Our hoses are supplied in pre-cut lengths suitable for common applications. For specific requirements or long lengths, we advise contacting us. Pre-cut format avoids waste and facilitates installation.

  Q4: Do these hoses resist fuel and oil vapors? A: Yes, VMQ silicone perfectly resists hydrocarbon vapors present in the engine bay. This resistance is essential for vacuum hoses permanently exposed to these vapors, particularly in vapor recovery circuits.

  Q5: How do I connect a 4mm hose to a 6mm circuit? A: We offer a special 10-25mm reducer that can be adapted for diameter transitions. For small diameters like 4-6mm, specific T or Y connectors are available in our accessories range.

  Q6: Are your vacuum hoses suitable for modern turbo systems? A: Absolutely. Our VMQ silicone hoses are perfectly suited for pneumatic wastegates and pressure control systems of modern turbos. They maintain their properties even under high turbo engine bay temperatures.

  Q7: What's the lifespan of these hoses versus original rubber? A: VMQ silicone offers significantly superior lifespan versus standard rubber. It doesn't harden, crack or lose flexibility even after years of exposure to temperature extremes and hydrocarbon vapors.

•

  Humps

  REDOX silicone hump hoses provide essential vibration dampening and movement compensation solutions for high-performance automotive systems. Manufactured from VMQ silicone reinforced with multi-layer polyester fabric, these hoses feature a characteristic central hump enabling optimal flexibility between fixed and moving engine components. Available in diameters from 51mm to 76mm with standard 100mm length, our hoses perfectly resist coolant fluids, oil vapors, fuel vapors and turbo boost pressure within a -40°C to +180°C temperature range.

  Our permanent stock ensures immediate availability for all references. Every order placed before 5pm ships same day, with GLS delivery within 24-48 hours throughout Europe. This logistics responsiveness meets urgent requirements of professionals and demanding enthusiasts alike.

  Primary applications include turbo air circuits, intercooler systems, cooling lines and modified intake systems. Compatible with Alfa Romeo, BMW, Ford, Peugeot, Renault, Volkswagen and numerous European and Japanese brands, each hose supports pressures up to 5 bar thanks to reinforced construction. VMQ silicone ensures exceptional durability against repeated mechanical stress and chemical aggression within engine bays. Our transparent pricing includes all detailed technical specifications to facilitate your application-specific selection. The central hump design effectively absorbs engine vibrations while maintaining consistent flow characteristics. These professional-grade components replace inferior rubber alternatives, offering superior longevity and performance retention even under extreme racing conditions where standard components fail.

  FAQ

  Q1: What's the difference between single and double hump hoses? A: Single hump hoses feature one central bulge providing standard flexibility for moderate vibrations. Double hump versions with two bulges offer superior absorption and greater misalignment compensation, recommended for high-stress installations.

  Q2: How do I select the correct diameter for my turbo system? A: Precisely measure the outer diameter of your existing pipes. Our hoses from 51mm to 76mm cover most petrol and diesel turbo applications. For optimal fit, the hose inner diameter must exactly match your pipe outer diameter.

  Q3: Do REDOX hoses resist engine oil and fuel? A: Our VMQ silicone hoses resist oil and fuel vapors but aren't designed for permanent direct fluid contact. For oil or fuel circuits, we recommend specific FKM/Viton hoses available in our catalog.

  Q4: Can I install these hoses without special mechanical skills? A: Installation is achievable with basic tools: screwdriver, appropriate hose clamps and possibly silicone lubricant. The hose positions between two rigid elements, with the central hump absorbing movement. Allow 15-30 minutes per hose.

  Q5: What performance improvement can I expect? A: Hump hoses don't directly increase power but preserve reliability by reducing connection stress. They decrease transmitted vibrations, extend component lifespan and prevent movement-induced leaks.

  Q6: Does your stock allow immediate delivery for 10 identical hoses? A: Yes, our permanent stock maintains multiple units of each reference. For 10 identical pieces ordered before 5pm, same-day shipping guaranteed. GLS delivery 24-48 hours across Europe.

  Q7: Do hoses withstand extreme motorsport temperatures? A: Our VMQ silicone hoses operate continuously from -40°C to +180°C. For intensive racing use with temperature peaks, they tolerate spikes up to 220°C for short periods without degradation.

•

  Double humps

  REDOX double hump hoses represent the ultimate evolution in vibration dampening solutions for automotive circuits under extreme stress conditions. Featuring two characteristic humps instead of one, these VMQ silicone hoses provide superior absorption capacity and effectively compensate significant misalignments between engine components. Available in diameters from 51mm to 76mm with extended 150mm length, they perfectly resist temperatures from -40°C to +180°C, supporting pressures up to 5 bar in highly stressed turbo circuits.

  Our permanent stock guarantees immediate availability of all double hump references. Orders before 5pm ship same day, GLS delivery assured within 24-48 hours throughout Europe. This logistics responsiveness meets critical requirements of engine tuners and professional racing teams.

  Preferred applications include highly stressed intercooler-turbo connections, engine-chassis links experiencing intense vibrations and custom circuits requiring significant angular compensation. Compatible with high-performance vehicles including Alfa Romeo, BMW M-Series, Mercedes AMG, Audi RS, Porsche and others. Multi-layer polyester-silicone construction ensures exceptional durability against repeated thermal cycles and severe mechanical constraints. Double hump means double protection against premature failures caused by vibration fatigue. Our transparent pricing includes detailed specifications enabling optimal selection according to specific technical requirements of your performance project. These professional-grade components outperform standard single hump alternatives in demanding motorsport applications where reliability determines race outcomes.

  FAQ

  Q1: Why choose double hump over single hump? A: Double hump offers 60% additional vibration absorption through dual humps. Compensates misalignments up to 15mm and tolerates greater angular movements. Recommended for high-pressure turbo installations, chassis-mounted intercoolers and racing applications where stresses exceed single hump capabilities.

  Q2: Does the 150mm length of double humps cause space issues? A: The 150mm enables the double hump while maintaining sufficient straight sections for flow stability. In very confined spaces, prefer our 100mm single hump hoses. The additional length significantly improves durability by better distributing stresses.

  Q3: What maximum pressure do your double hump hoses support? A: Our VMQ double humps support 5 bar continuously, with tolerated peaks up to 7 bar. Multi-layer polyester reinforced structure prevents deformation under pressure. Tests validated for petrol turbo applications up to 2.5 bar and diesel up to 3 bar in intensive use.

  Q4: How do I correctly install a double hump hose? A: Position both humps symmetrically between elements to connect. Use silicone lubricant for easier fitting. Tighten clamps progressively alternating for uniform distribution. Minimum distance 20mm between clamp and hump start. Installation requires 20-40 minutes depending on accessibility.

  Q5: Do double humps reduce airflow in my circuit? A: Negligible impact on flow rate. Humps create minimal turbulence compensated by better system durability. Tests demonstrate pressure loss under 2% versus straight hose, largely offset by increased reliability and protection against catastrophic failures.

  Q6: How many 63mm double humps do you typically stock? A: Permanent stock maintained with minimum 10 units per common reference like 63mm. Weekly replenishment guarantees constant availability. For orders exceeding 20 identical pieces, contact us 48h beforehand for optimal preparation. Same-day shipping before 5pm confirmed.

  Q7: Are your double humps suitable for endurance racing temperatures? A: Perfectly suited for endurance with continuous resistance -40°C to +180°C. Tolerate peaks 220°C during cumulated 30 minutes. 24h Nürburgring tests validated. Preventive inspection recommended every 10,000km racing or annually in intensive road use.

•

  Reducer Straight

  REDOX straight reducers offer a complete range of 77 references for all your inline diameter adaptations. Manufactured from reinforced VMQ silicone, these reducer sleeves enable progressive transition between pipes of different diameters without directional change. Available in a vast diameter range from 13mm to 152mm, with varied lengths from 77mm to 370mm depending on reference. This dimensional diversity meets all connection requirements, from miniature applications to large industrial diameters.

  Our very large stock guarantees permanent availability of these 77 references. Orders placed before 5pm ship the same day, with GLS delivery within 48 hours maximum throughout Europe. This logistics responsiveness meets urgent needs of automotive, industrial and maintenance professionals requiring reliable connection solutions quickly.

  Main applications: cooling circuits, turbo boost systems, air intake systems, industrial hydraulic and pneumatic systems. Compatible with all vehicle and machine types. VMQ silicone ensures excellent resistance to temperature extremes, cooling fluids, oil vapors and high pressures. A special version with offset axes is also available for installations requiring particular alignment. Economical and durable solution to replace original rubber reducers.

  FAQ

  Q1: What's the advantage of a straight reducer versus an angled reducer? A: Straight reducer is used for inline connections where no direction change is needed. It offers best possible flow with minimal pressure loss. Ideal for direct connections between aligned components, takes less space than angled reducer and facilitates installation in tight spaces.

  Q2: How do I choose from your 77 straight reducer references? A: Precisely measure the outer diameter of your two pipes to connect. Our range covers transitions from 13mm to 152mm. Then choose the length suited to your installation from available options (77mm to 370mm). For large transitions, prefer longer length for progressive reduction.

  Q3: Which reducer length should I choose for my application? A: Short lengths (77-85mm) suit tight spaces and small reductions. Medium lengths (125-150mm) are versatile and most common. Long lengths (200-370mm) enable very progressive transitions for large diameter differences or high-performance applications where flow must be optimized.

  Q4: What is an offset axes reducer? A: The offset axes reducer allows connection of two pipes that aren't perfectly aligned. This special version compensates for misalignment while ensuring diameter reduction. Useful for complex installations where perfect alignment is impossible.

  Q5: Do straight reducers withstand the same stresses as other silicone hoses? A: Yes, our VMQ silicone straight reducers offer same resistance as our other products. They withstand temperature extremes, high pressures, and resist automotive fluids. Reinforced construction guarantees durability and reliability in intensive use.

  Q6: Are your 77 references all immediately available? A: We maintain very large stock to ensure availability of our range. Orders placed before 5pm ship same day. For large quantities or specific references, we advise contacting us to confirm availability.

  Q7: Can I use a straight reducer in a high-pressure turbo circuit? A: Absolutely. Our reinforced VMQ silicone straight reducers are designed for high-pressure applications including turbo circuits. Progressive diameter transition minimizes turbulence and maintains optimal flow, essential for turbo performance.

•

  Reducers 45°

  REDOX 45° reducer elbows combine diameter adaptation and directional change in a single professional solution. Manufactured from multi-layer polyester-reinforced VMQ silicone, these angled reducers enable smooth transitions between different pipe diameters while creating perfect 45° angles. Available in 18 diameter combinations from 25-32mm to 85-100mm, lengths 100x100mm standard or 150mm extended, resistance -40°C to +220°C, maximum pressure 10 bar. Optimized construction for high-pressure turbo circuits, competition cooling and modified intake systems.

  Very large stock guarantees permanent availability all references without shortage. Every order validated before 5:00 PM ships imperatively same day from our centralized warehouse. GLS delivery guaranteed 24-48 hours throughout Europe, real-time tracking included. This premium logistics meets professional mechanic emergencies, demanding engine tuners and competition requirements needing ultra-fast reliable year-round supply.

  Preferred applications include turbo-intercooler connections with section change, pump-radiator transitions different diameters, performance intake connections and custom circuits requiring directional flow optimization. Universal compatibility European, Japanese, American vehicles. VMQ silicone guarantees constant angle maintenance under stress, zero thermal deformation and minimum 10-year durability. Economical solution versus two separate pieces, simplified installation only two clamps. Transparent pricing, technical support available, detailed specifications systematically provided for optimal selection according to specific high-performance application.

  FAQ

  Q1: Do you really have all 45° reducers in immediate stock? A: Yes, minimum stock 10 units permanently maintained for each of 18 combinations. Automatic weekly replenishment from our manufacturing. Real-time inventory system prevents any shortage. For orders exceeding 20 identical pieces, contact 48h before guarantees availability. Very large stock = REDOX commitment for 15 years.

  Q2: If I order at 4:45 PM, does it really ship today? A: Absolutely. Order processing until 5:00 PM sharp, GLS collection 5:30 PM. Dedicated team handles urgent orders priority. Shipping confirmation with tracking number sent before 6 PM. Deadline met in 99.8% of cases. In exceptional delay, immediate notification with express solution proposed.

  Q3: Does 48-hour delivery really work throughout Europe? A: GLS delivers 24h UK, 48h maximum rest of Europe (Germany, France, Italy, Spain, Benelux, Austria). Nordic countries 72h. Precise tracking systematically provided. Express option 24h available Europe-wide for additional fee. Delivery rate within announced timeframes: 97%.

  Q4: Why choose integrated 45° reducer rather than two separate pieces? A: Integrated solution offers progressive turbulence-free transition, space saving 40%, two clamps instead of four, leak risk halved. Installation 15 minutes versus 30 minutes. Total cost 25-30% lower. Optimized flow improves performance 5-8%. Professional aesthetics, weight reduction approximately 150g.

  Q5: How to select the right reducer for my high-pressure turbo? A: Precisely measure outer diameter inlet pipe (large) and outlet (small). Example: 76mm to 63mm = reference 76-63mm. Our 4-ply reducers (>41mm) support 3 bar continuous boost, peaks 5 bar. 150mm version recommended large flows for more progressive transition. Free technical support available.

  Q6: Do your 45° reducers withstand endurance racing temperatures? A: Continuous resistance -40°C to +180°C, peaks 220°C tolerated 30 minutes cumulated. Tests validated 24h Nürburgring, WRC extreme conditions. VMQ silicone maintains properties after 500,000km intensive use. No deformation, cracks or sealing loss observed. Warranty 2 years normal use, 1 year competition.

  Q7: What quality difference with cheaper Chinese reducers? A: Certified European VMQ silicone versus unknown materials. Guaranteed thickness 4.3-5.3mm versus variable 3mm. Documented pressure tests versus no data. Immediate Europe stock versus 4-8 weeks shipping. English technical support versus no customer service. Lifespan 10 years versus 2-3 years maximum.

  Q8: Is next-day delivery available for urgent racing needs? A: Yes, express 24h service available all Europe for racing teams and urgent repairs. Order before 2 PM for guaranteed next-day delivery. Surcharge applies depending on destination. Weekend delivery possible for major events. Priority handling for professional racing teams with account.

•

  Reducers 90°

  REDOX 90° reducer elbows offer an exceptional range of 72 references to meet all your angular connection needs with diameter change. Manufactured from VMQ silicone reinforced with multi-layer polyester fabric, these angled reducers enable optimal transitions between pipes of different diameters while creating a precise 90° angle. Available in a wide range of diameters from 13mm to 102mm, with different lengths depending on reference. The VMQ silicone construction ensures temperature resistance from -60°C to +180°C and excellent pressure resistance for the most demanding applications.

  Our very large stock ensures permanent availability of these 72 references. Orders placed before 5pm ship the same day, with GLS delivery within 48 hours maximum throughout Europe. This logistics responsiveness meets the needs of mechanical professionals, engine tuners and racing teams who require parts quickly.

  Main applications: high-performance cooling circuits, turbo boost systems, modified intakes, industrial hydraulic circuits. Compatible with all types of European, Japanese and American vehicles. VMQ silicone resists cooling fluids, oil vapors, fuel vapors and supports turbo boost. A special version with hydrocarbon inner coating is also available on certain references for specific fuel or oil applications.

  FAQ

  Q1: What's the difference between a 90° reducer and a 90° elbow + reducer coupling combination? A: The integrated 90° reducer offers a more compact solution with one piece instead of two, reducing connection points and thus leak risks. Installation is simplified with only two clamps needed. The progressive diameter transition in the bend optimizes flow and reduces turbulence.

  Q2: How do I choose the right reducer from your 72 references? A: Precisely measure the outer diameter of your inlet and outlet pipes. Our range covers combinations from 13mm to 102mm. Also check available space for the bend radius. Different available lengths allow adaptation to space constraints. Our technical support can help with your selection.

  Q3: Do the 90° reducers support high-pressure turbo applications? A: Yes, our polyester-reinforced VMQ silicone reducers are designed to handle high pressures in turbo circuits. The multi-layer construction guarantees excellent pressure resistance and deformation resistance. They are perfectly suited for petrol and diesel boost applications.

  Q4: Do your reducers resist fuels and oils? A: Standard VMQ silicone reducers resist oil and fuel vapors. For permanent direct contact with hydrocarbons, we offer a special version with adapted inner coating. This version is available on certain references, contact us for your specific needs.

  Q5: What is the lifespan of these reducers? A: VMQ silicone offers excellent durability with resistance to aging, UV and chemical attack. Under normal operating conditions, these reducers maintain their properties for many years. The build quality guarantees superior longevity compared to original rubber hoses.

  Q6: Are the 72 references really available in stock? A: We maintain very large stock to ensure availability of our complete range. Orders placed before 5pm ship the same day. For large quantities or specific references, we advise contacting us to confirm immediate availability.

  Q7: What are the delivery times for Europe? A: GLS delivery in 24-48 hours for UK and 48 hours maximum for all Europe. Tracking is available from dispatch. For urgent needs, express delivery options can be offered.

•

  Caps

  REDOX Silicone Caps - Female VMQ Plugs - Diameters 0.24" to 2" - Permanent Stock

  REDOX silicone caps range includes 17 references of female plugs for automotive and industrial circuits. High-quality VMQ silicone resistant from -58°F to 356°F. Universal solution for temporary or permanent sealing of fluid circuits.

  Complete range available: Female caps inner diameters: 0.24", 0.31", 0.39", 0.47", 0.51", 0.63", 0.75", 0.87", 0.98", 1.1", 1.18", 1.26", 1.38", 1.5", 1.57", 1.77", 2". Standard length 1.18" for optimal insertion. Permanently available in stock.

  Technical specifications: VMQ silicone material and polyester fabric support. Resists coolant fluids, oil vapors, fuel vapors and turbo boost air. Operating temperature -58°F to 356°F continuous.

  Universal applications: Sealing cooling circuits during maintenance. Temporary plugging hydraulic lines. Protection hose ends storage. Leak testing pressure circuits. Automotive, industrial, marine applications. Ideal competition vehicle preparation.

  Product advantages: Quick installation without tools. Perfect sealing by elastic deformation. Multiple times reusable. Chemical resistance superior to rubber. Color allows quick identification. Competitive prices from €5.83.

  Stock and availability: 17 references permanently stocked. Same day shipping orders before 5 PM. Unit or bulk packaging.

  Caps FAQ - Frequently Asked Questions

  What is the function of female caps? REDOX female caps insert into hose or tube ends for temporary or permanent circuit sealing. Cap inner diameter matches tube outer diameter. Length 1.18" ensures optimal retention.

  How to choose the right diameter? Measure outer diameter of tube to seal. Select cap with corresponding inner diameter. REDOX range covers 0.24" to 2", suitable for majority automotive and industrial applications. Light clamping ensures perfect seal.

  Do caps resist automotive fluids? Yes, VMQ silicone resists coolant fluids, oil vapors, fuel vapors, compressed air. Compatible with antifreeze, water, turbo boost air. Not suitable for permanent contact with liquid fuel or aggressive oils.

  What difference with rubber caps? VMQ silicone offers extended temperature range -58°F/356°F versus -22°F/212°F rubber. Superior durability, no hardening or cracking. Excellent UV/ozone resistance. Reusable many times without degradation.

  Can these caps be used under pressure? Designed for low/medium pressure applications. Perfect for cooling circuits (14-29 PSI), leak tests, storage protection. For high pressure >43 PSI, specific solutions recommended.

  Are caps reusable? Yes, VMQ silicone retains elasticity after multiple uses. No permanent deformation. Simple cleaning with soapy water. Storage at room temperature, avoid hydrocarbon contact.

  Are there other plug types? REDOX also offers silicone plugs (subcategory). Custom solutions possible for specific applications. Male, tapered or sealing relief caps available on request.

  What are main applications? Cooling circuit maintenance, radiator draining. New hose storage protection. Hydraulic circuit pressure tests. Temporary sealing during repairs. Competition vehicle transport. Various industrial applications.
