90° silicone FVMQ-lined elbow hose - 55 mm inner diameter - 125 mm length
New product
90° elbow hose in VMQ silicone with FVMQ inner liner and polyester reinforcement, 55 mm ID, 125 mm length. 4-ply (5 mm) construction, Shore 70A hardness, -50 to +180 C (H version, FVMQ inner liner). For fuel circuits (petrol, diesel. In stock, same-day dispatch before 5 pm, 48 h delivery.
-
90° silicone FVMQ-lined elbow hose - 55 mm inner diameter - 125 mm length

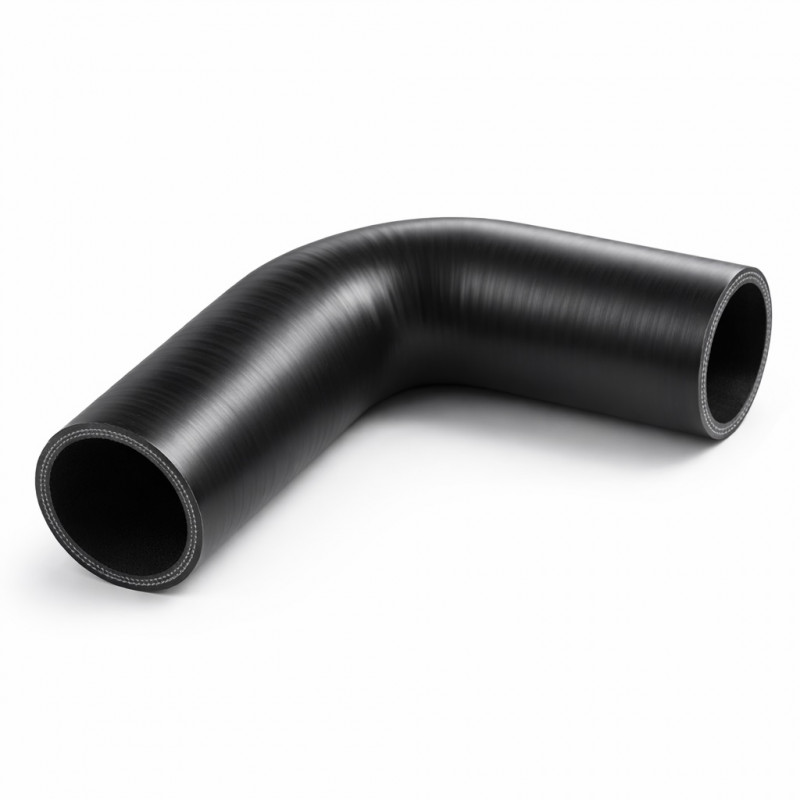

This REDOX silicone elbow in VMQ silicone with FVMQ inner liner and polyester reinforcement provides a 90-degree change of direction on a 55 mm inner diameter line. The 125 mm total length leaves enough margin on each side for proper hose clamp positioning.
Technical specifications
- Angle: 90°
- Inner diameter: 55 mm
- Total length: 125 mm
- Construction: 4-ply (5 mm wall thickness)
- Material: VMQ silicone with FVMQ inner liner and polyester reinforcement
- Hardness: Shore 70A
- Temperature range: -50 C to +180 C
- H version: FVMQ inner liner for hydrocarbon compatibility (petrol, diesel, E85, oil vapours)
Applications
Suitable for: fuel circuits (petrol, diesel, E85), oil vapours, charge-air (turbo), thermal engine coolant, EV battery and electric motor cooling, wet marine exhaust. Also fits any industrial application using VMQ silicone with FVMQ liner + polyester.
Packaging
Each elbow features two white "R REDOX" logos applied at each end. Individual packaging in a neutral transparent plastic bag with product reference label.
Permanent stock and fast shipping
This elbow is kept in permanent stock in our warehouse. Any order placed before 5 pm is dispatched the same day. Delivery within 48 hours across mainland Europe. Tracking number provided as soon as the parcel is handed over to the carrier.
