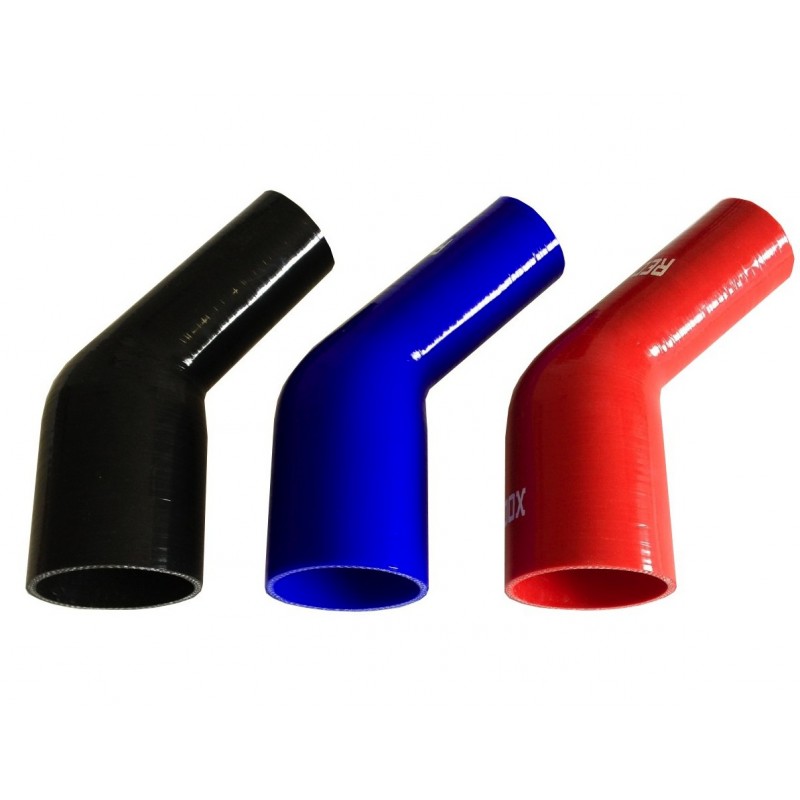

This REDOX silicone reducer in VMQ silicone with polyester reinforcement connects a 51 mm inner diameter line to a 70 mm one, with a 45-degree change of direction. The 125 mm total length leaves enough margin on both ends for proper hose clamp positioning.

Technical specifications

• Type: 45° angled reducer
• Side 1 diameter: 51 mm
• Side 2 diameter: 70 mm
• Total length: 125 mm
• Construction: 4-ply (5 mm wall thickness, sized on the larger diameter 70 mm)
• Material: VMQ silicone with polyester reinforcement
• Hardness: Shore 70A
• Temperature range: -60 C to +180 C

Applications

Suitable for: charge-air (turbo), thermal engine coolant, EV battery and electric motor cooling, wet marine exhaust. Also fits any industrial application using VMQ silicone + polyester.

Packaging

Each reducer features two white "R REDOX" logos. Individual packaging in a neutral transparent plastic bag with product reference label.

Permanent stock and fast shipping

Kept in permanent stock. Any order placed before 5 pm is dispatched the same day. Delivery within 48 hours across mainland Europe.
