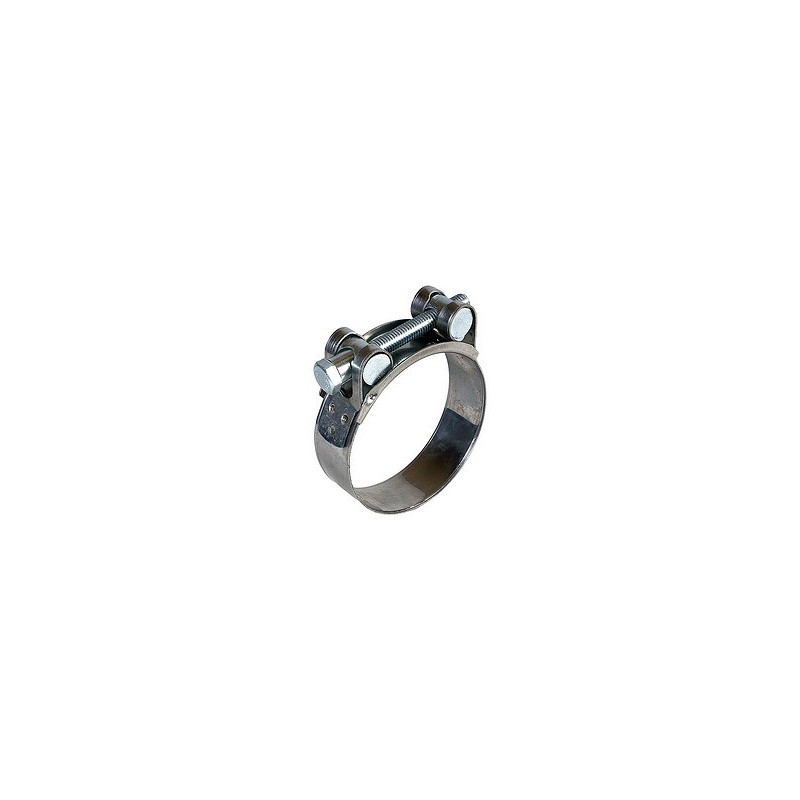

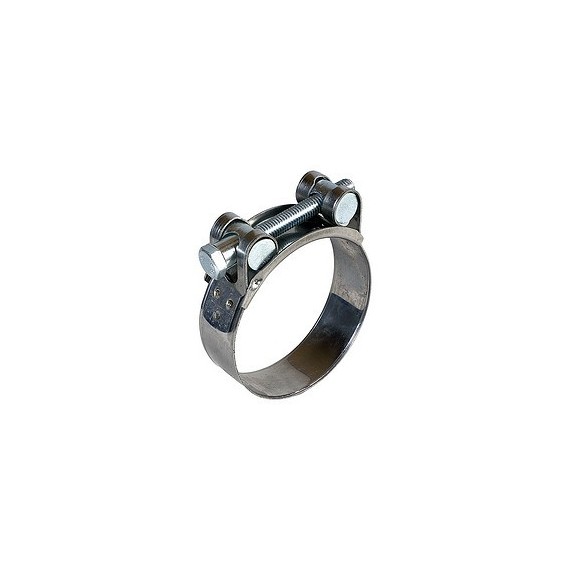

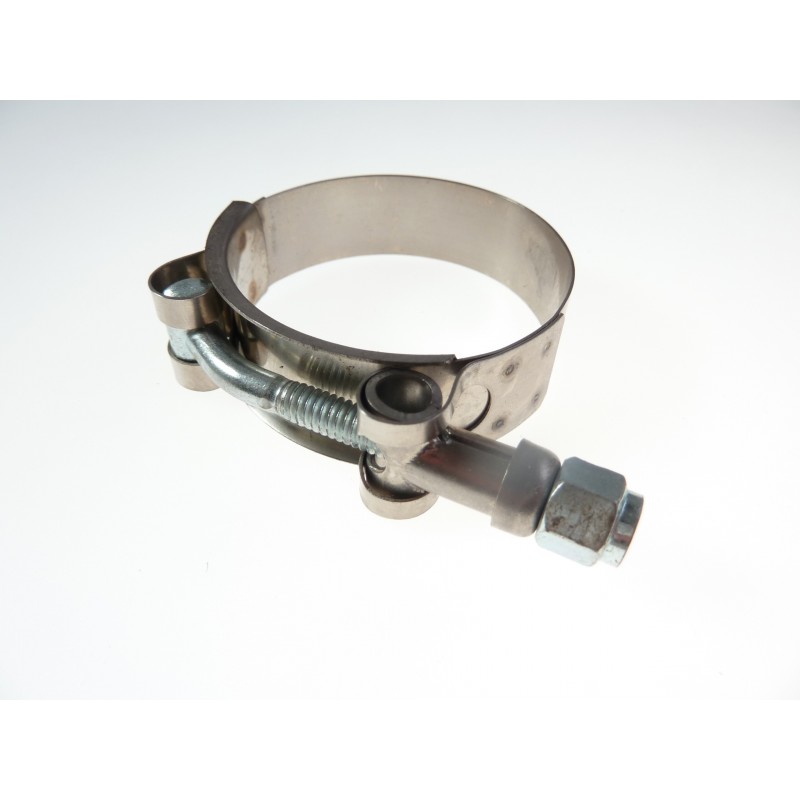

Stainless steel hose clamp W2 reinforced 98-103 mm DIN 3017
S2098
New product
REDOX W2 reinforced stainless steel hose clamp, clamping range 98-103 mm. DIN 3017 standard. W2 stainless steel band (AISI 430 equivalent), zinc-plated screw. Reinforced band for high pressure applications. Laser-marked reference on band.
-
Stainless steel hose clamp W2 reinforced 98-103 mm
Worm-drive hose clamp in W2 stainless steel (DIN 3017 standard), designed for silicone and rubber hose retention under pressure and vibration. Reinforced version for larger diameters.
Technical characteristics
- Clamping range: 98 to 103 mm
- Band: W2 stainless steel (AISI 430)
- Screw: zinc-plated steel
- Band width: 12 mm
- Standard: DIN 3017
- Laser-marked reference
Applications
- Securing REDOX silicone hoses ≥ Ø 90 mm
- Coolant circuits, intercooler, air intake
- Industrial, agricultural, heavy duty
Technical advantages
The reinforced W2 version combines stainless band corrosion resistance with a robust zinc-plated screw. The 12 mm band width spreads clamping force without cutting the hose. DIN 3017 geometry ensures interchangeability with market clamps.
Packaging
1 clamp supplied in a clear plastic bag labelled with reference and barcode.
