REDOX Silicone Turbo Intercooler Hose - Renault Master 2 Opel Movano Nissan Interstar 2.5 dCi - 8200751792

High-Performance Silicone Turbo Hose for Renault Master II, Opel Movano A and Nissan Interstar 2.5 dCi

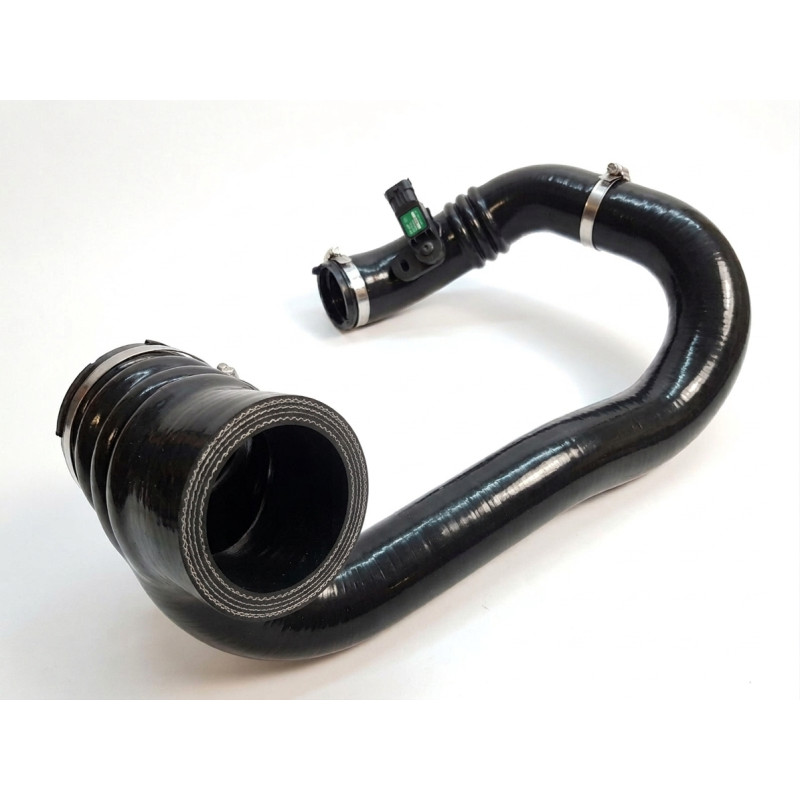

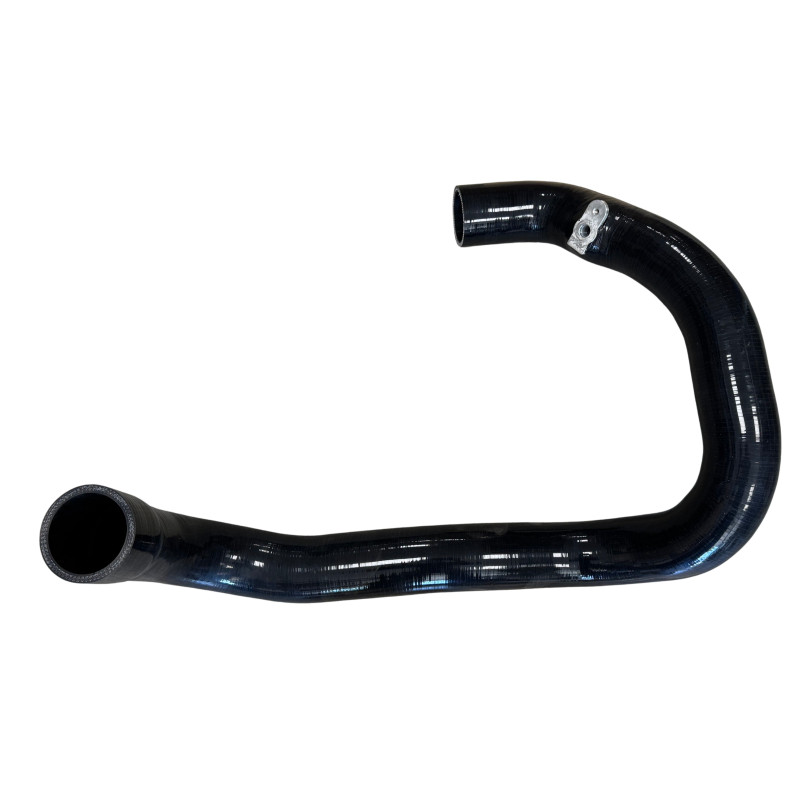

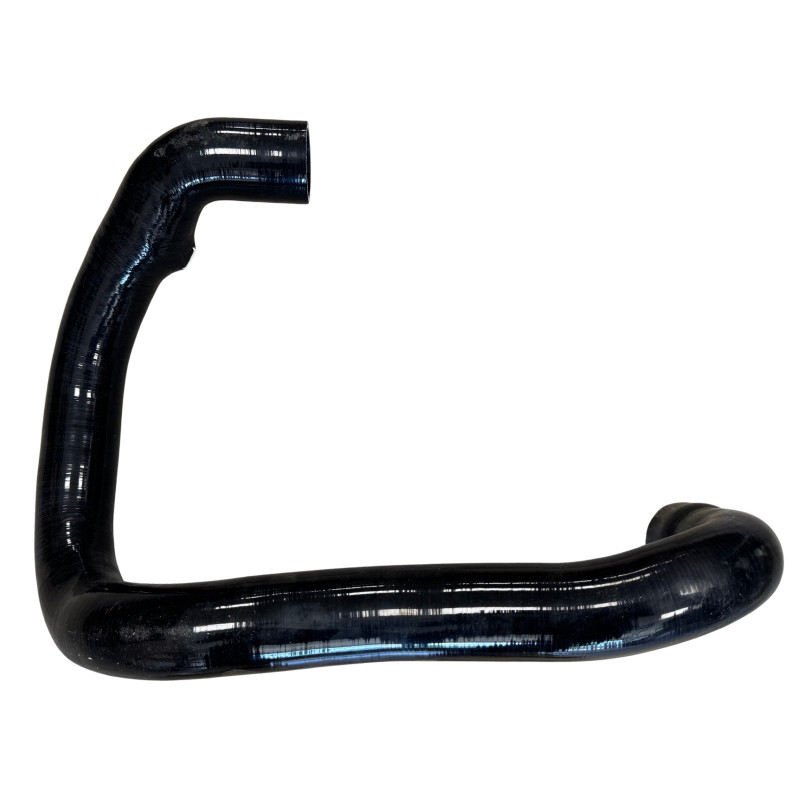

This REDOX silicone hose faithfully replicates the complex shape of the original part and is a direct replacement for the factory air duct connecting the charge air cooler (intercooler) to the intake manifold on Renault Master II, Opel/Vauxhall Movano A and Nissan Interstar vans fitted with the 2.5 dCi engine (G9U block). Manufactured from premium VMQ silicone with multi-layer polyester reinforcement and an FVMQ fluorosilicone inner liner resistant to hydrocarbons, it delivers significantly greater heat resistance, chemical resistance and longevity than the factory rubber hose, which is prone to cracking and premature degradation on these commercial vehicles. The FVMQ inner lining effectively protects the hose against oil vapour and hydrocarbon residues present in the charge air system.

Technical Specifications:

• Configuration: complex S-shaped moulded hose with multiple bends
• Intercooler end: bellows (accordion) section with worm-drive hose clamp
• Intake manifold end: smooth spigot with worm-drive hose clamp
• Integrated port for boost pressure sensor (MAP sensor)
• Intermediate mounting bracket for engine bay fitment
• Fitting position: charge air cooler (intercooler) to intake manifold
• Construction: 5-ply VMQ silicone with polyester reinforcement, FVMQ inner liner
• Inner liner: FVMQ fluorosilicone, hydrocarbon resistant
• Wall thickness: 5 mm
• Hardness: Shore 70A
• Heat resistance: up to 180 degrees C
• Hydrocarbon resistance: FVMQ inner liner (oil vapour, fuel residues)
• Superior heat resistance compared to the original rubber part
• Long-lasting flexibility and seal integrity

Verified Vehicle Application

This hose has been designed for the following applications:

• Renault Master II 2.5 dCi 100 hp (G9U 754) - 2003 to 2010
• Renault Master II 2.5 dCi 120 hp (G9U 720 / G9U 724 / G9U 750) - 2001 to 2010
• Renault Master II 2.5 dCi 115 hp / 150 hp (G9U 650 / G9U 632) - 2006 to 2010
• Vauxhall / Opel Movano A 2.5 DTI / CDTI - 1998 to 2010
• Nissan Interstar 2.5 dCi - 2002 to 2010
• Panel vans, chassis cabs and platform bodies fitted with the G9U engine

Original Manufacturer Reference

Replaces the original hose reference 8200751792. Cross-reference part number: 8200843680. These OEM references guarantee a perfect fit for your vehicle. The original boost pressure sensor (ref. 223650001R) fits directly onto the integrated port on this hose.
