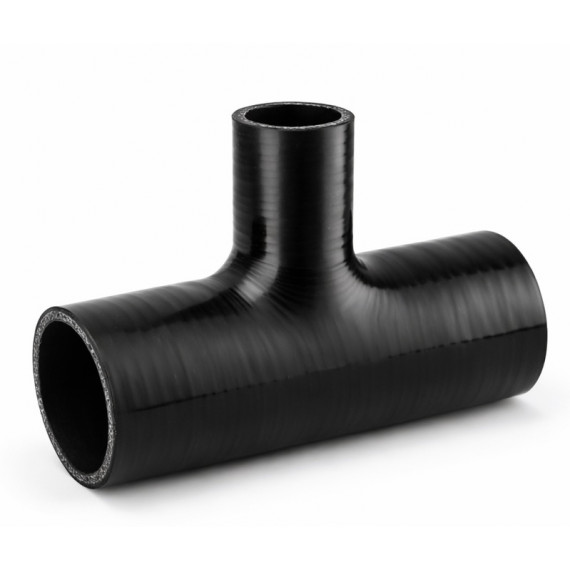

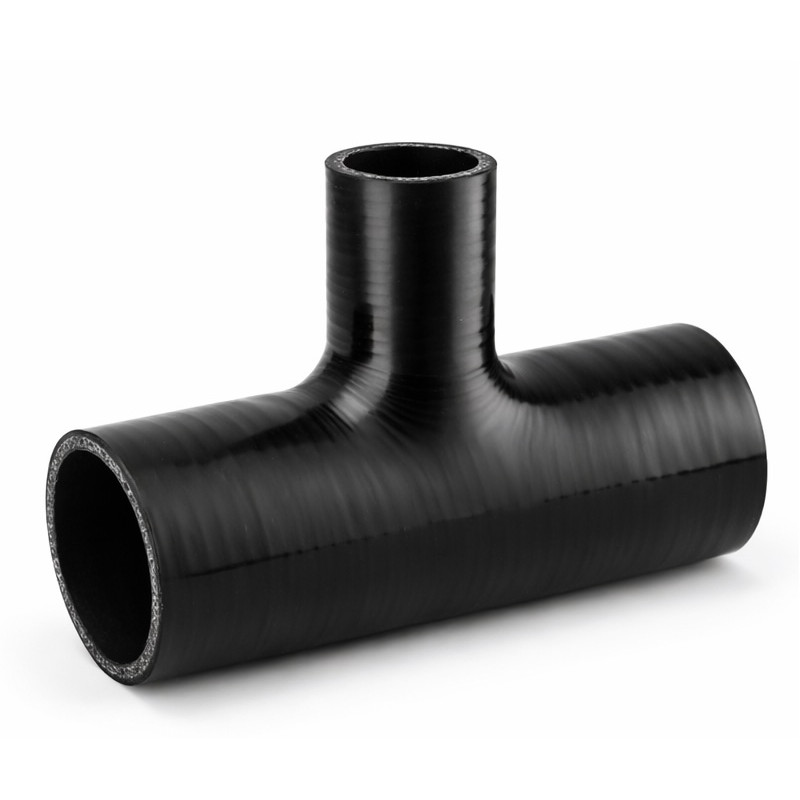

Silicone T-Piece 22mm-18mm 160x60mm - 3-Ply Reinforced REDOX

Silicone T-Piece 22mm-18mm - Professional Solution

The REDOX silicone T-piece 22mm-18mm represents the optimal solution for creating efficient junctions in your automotive circuits. With its precise dimensions of 160mm length and 60mm side branch, this T-connector offers maximum versatility for demanding engine installations.

Technical 3-Ply Reinforced Construction

Our T-piece features a sophisticated multi-layer architecture ensuring performance and durability:

•        T-configuration: 22mm inlet, 18mm outlets
•        Precise dimensions: 160mm x 60mm for optimised fitment
•        Wall thickness: 4mm for maximum mechanical strength
•        3-ply construction: VMQ/polyester for pressure resistance
•        Compatible diameters: transition 22mm to dual 18mm outlet
•        Optimised geometry: precise angles for optimal airflow

Engine Circuit Junction Applications

This T-piece perfectly adapts to various junction configurations:

•        Cooling system: fluid distribution to two circuits
•        Turbo intake: air junction to intercooler and wastegate
•        Vacuum system: vacuum distribution to multiple actuators
•        Crankcase breather: oil vapour separation
•        Intercooler circuits: compressed air flow distribution
•        Engine tuning: customisation of complex circuits

REDOX Benefits - Permanent Stock and Express Delivery

Benefit from REDOX premium service for your installations:

•        Permanent stock immediately available
•        Same-day dispatch for orders placed before 5pm
•        Fast GLS delivery 24-48h across Europe
•        REDOX lifetime warranty on all our silicone hoses
•        Expert technical customer service

Key Technical Features

•        Type: T-piece (triple junction)
•        Material: premium VMQ silicone with polyester reinforcement
•        Inlet diameter: 22mm
•        Outlet diameter: 18mm (x2)
•        Total length: 160mm
•        Side branch: 60mm
•        Flexibility: suppleness maintained in extreme conditions
•        Durability: resistance to ageing and ozone

FAQ - Frequently Asked Questions

Why is the inlet diameter different from the outlets?

The 22mm to 18mm configuration allows optimal transition to distribute flow between two circuits. The 22mm inlet accepts main flow which then divides into two 18mm outlets.

Can I reverse the installation direction of this T-piece?

Yes, you can use the two 18mm outlets as inlets to merge them into the 22mm outlet. The T-piece geometry allows bidirectional use according to your needs.

How do I secure this T-piece with three connections?

Use appropriate hose clamps for each diameter: 22mm clamps for the inlet and 18mm clamps for the two outlets. The 4mm wall thickness guarantees excellent sealing.

Does this T-piece withstand turbo circuit pressure?

Absolutely. The 3-ply construction with polyester reinforcement and 4mm wall thickness offer robustness suitable for pressures encountered in turbo and intercooler circuits.

Do the 160x60mm dimensions correspond to the T-branches?

Yes, 160mm corresponds to the total length of the main hose and 60mm to the length of the perpendicular side branch, allowing precise positioning in your installation.

What does the REDOX lifetime warranty cover on this T-piece?

Our lifetime warranty covers all manufacturing and material defects. In case of cracks, tears or quality-related defects, we provide free replacement under normal operating conditions.

Delivery time for this specific T-piece?

Our permanent stock enables same-day dispatch for orders placed before 5pm. GLS delivery guarantees receipt within 24 to 48 hours across Europe.
