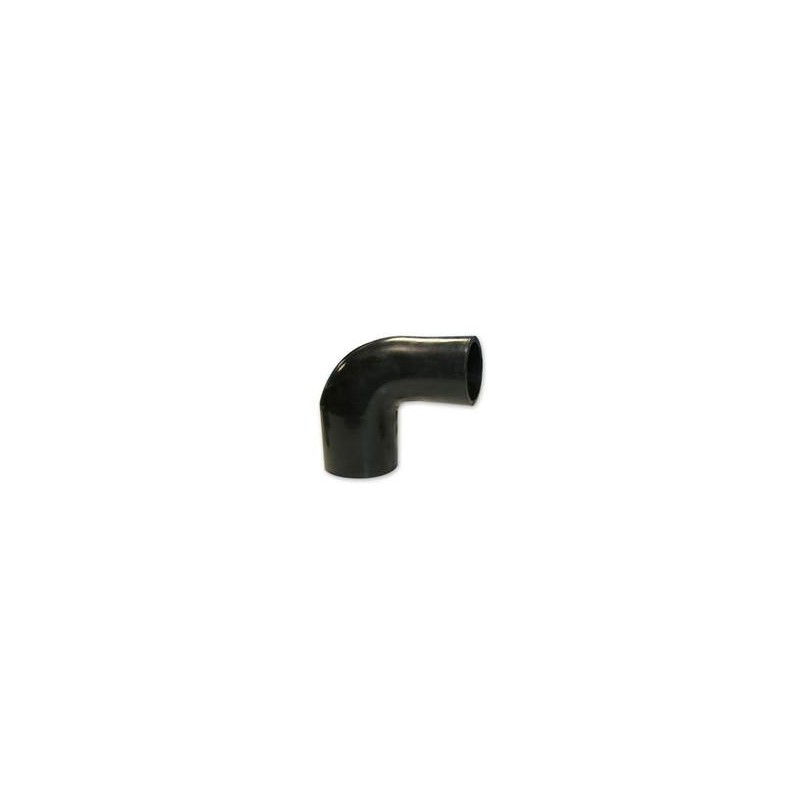

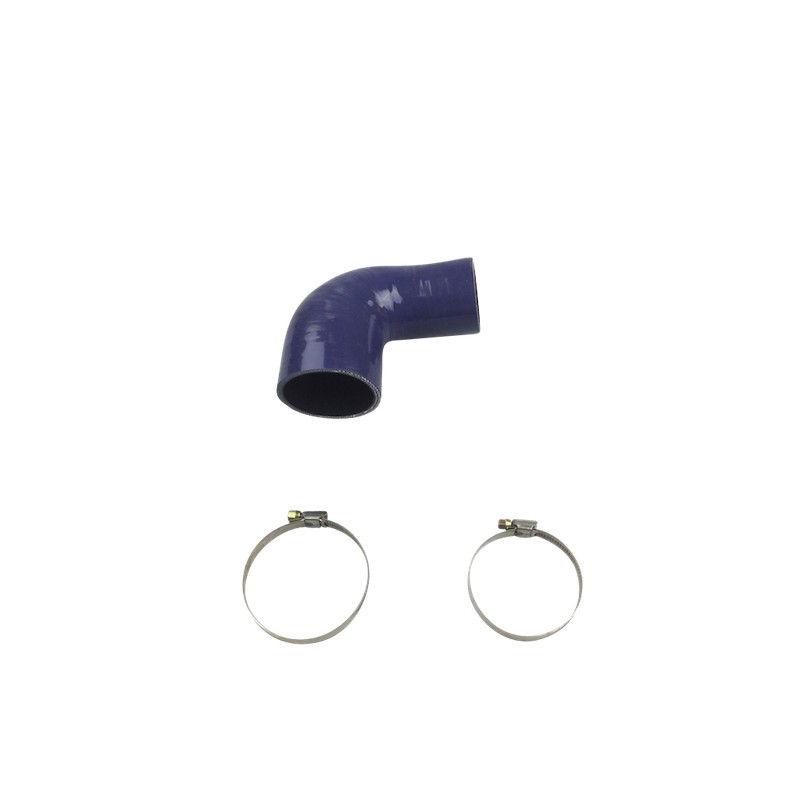

Silicone 108° Reducer Elbow 55-62mm with Hydrocarbon-Resistant Inner Layer REDOX

Silicone 108° reducer elbow 55-62mm with hydrocarbon-resistant coating

This high-performance silicone reducer elbow combines a precise 108° angle with a diameter reduction from 55mm to 62mm, featuring an internal coating specifically engineered to resist hydrocarbons. This technical hose is particularly suited for demanding applications requiring optimal resistance to fuels, oils, and other petroleum-based fluids.

Technical Specifications:

• Configuration: 108° reducer elbow
• Inlet diameter: 55 mm
• Outlet diameter: 62 mm
• Main leg length: 168 mm
• Secondary leg length: 80 mm
• Construction: 4-ply VMQ silicone with polyester reinforcement
• Wall thickness: 5 mm
• Internal coating: hydrocarbon-resistant (fuels, oils, gasoline)
• Temperature resistance: up to 180°C continuous
• Superior heat resistance compared to OEM rubber hoses
• Maintained flexibility over time despite hydrocarbon exposure

Recommended Technical Applications

This hydrocarbon-resistant hose is designed for the following applications:

• Turbocharger intake systems with engine oil presence
• Oil vapor lines (oil catch cans, breather systems)
• Turbo breather lines exposed to hydrocarbons
• Connections between air-oil intercoolers and intake
• Gas recirculation systems with oil contamination
• Motorsport applications requiring enhanced chemical resistance
• High-performance engine builds with complex plumbing systems

Advantages of Hydrocarbon-Resistant Internal Coating

The specialized hydrocarbon-resistant coating protects the silicone structure from degradation caused by prolonged contact with fuels, oils, and gasoline. This internal barrier preserves the mechanical properties of the hose and ensures exceptional durability even in the most chemically aggressive environments. The ideal solution for installations where standard silicone hoses deteriorate prematurely.

REDOX Advantages: Immediate Availability and Express Delivery

REDOX maintains permanent stock of this technical hydrocarbon-resistant hose. Your order ships the same day when placed before 5 PM, with guaranteed 48-hour delivery throughout the UK, France, and Europe. This immediate availability eliminates typical procurement delays for specialty parts and allows you to complete your high-performance installations quickly.
