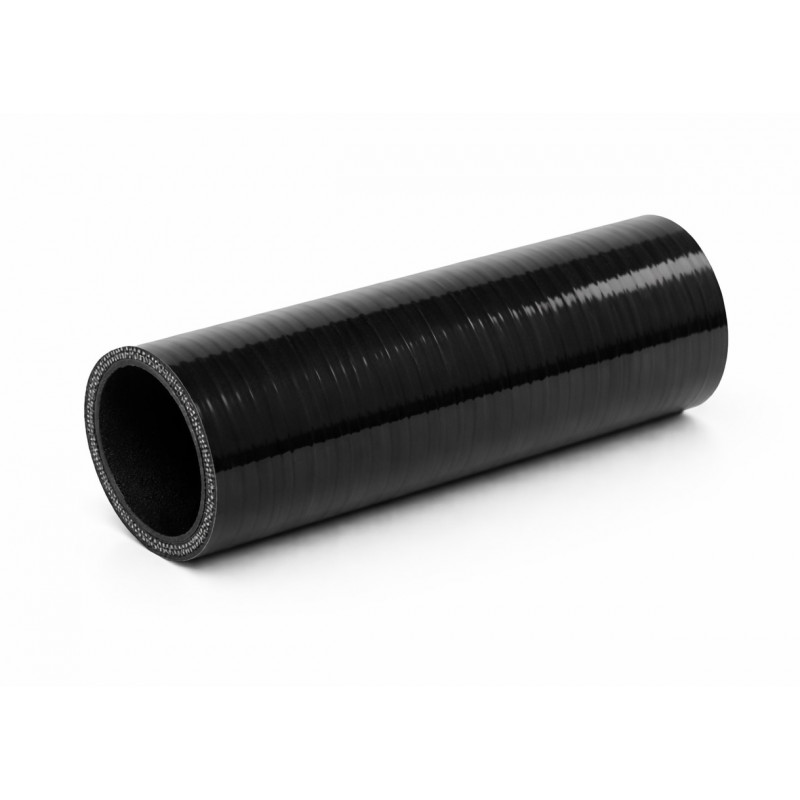

Straight silicone hose Ø48 mm L150 mm FVMQ inner liner — RDX48D150H REDOX

> >Straight silicone hose Ø48 mm L150 mm FVMQ inner liner — RDX48D150H REDOX

Straight silicone hose Ø48 mm L150 mm FVMQ inner liner — RDX48D150H REDOX

New product

Straight silicone hose ID 48 mm × 150 mm with FVMQ fluorosilicone inner liner. Multi-layer VMQ + FVMQ inner, polyester reinforcement, 5 mm wall, -50/+200 °C, 65-75 Shore A. Suited for oil, blow-by and turbo intake.

More details

50,40 € tax incl.

14 Items

IN STOCK

  • REDOX straight silicone hose, 48 mm inside diameter, 150 mm length, with FVMQ fluorosilicone inner liner. Used where standard VMQ cannot be: engine oil, crankcase breather, blow-by or turbo intake charged with PCV-recycled oil vapours.

    Technical construction

    • FVMQ inner liner (Fluorosilicone) in direct contact with oil or vapours
    • Multi-layer VMQ outer
    • Polyester woven reinforcement
    • 5 mm wall
    • ID 48 mm, length 150 mm
    • -50/+200 °C continuous
    • 65-75 Shore A hardness

    Why FVMQ inner liner

    Standard VMQ degrades on contact with hydrocarbons and hot oil vapours (swelling, loss of elasticity, leaks). FVMQ shows Class A chemical resistance to aromatic and aliphatic hydrocarbons and remains intact up to +200 °C continuous.

    Typical applications

    Turbo-to-intercooler link, engine breather hose, oil hose connection, crankcase-vent extension. Suited to turbocharged petrol and diesel engines.

    Delivery

    Hose supplied alone. W4 stainless clamps in 48 mm recommended. Plug-and-play friction fit + clamp tightening.
