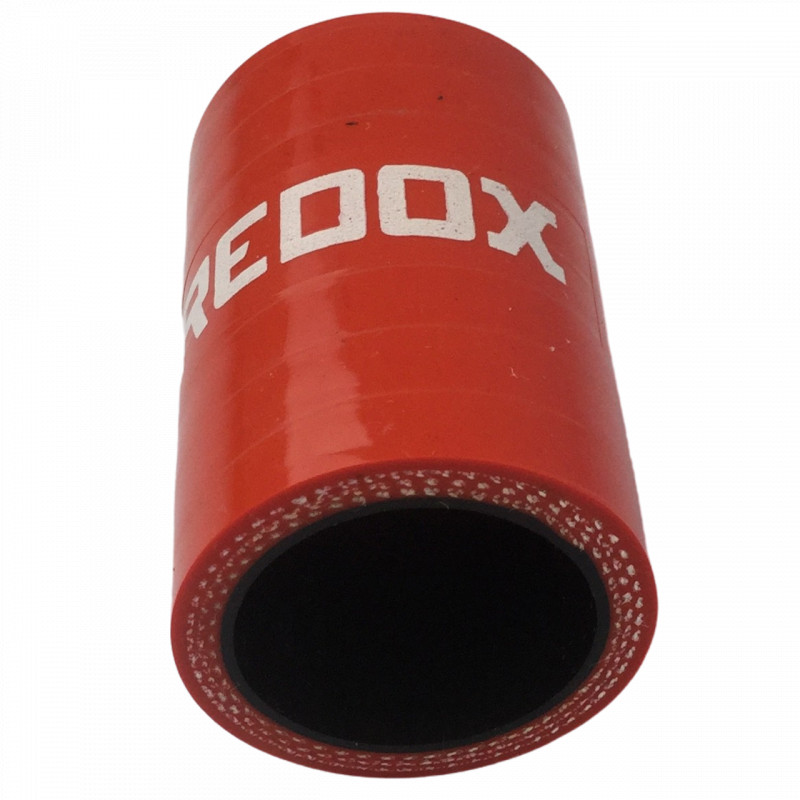

Straight silicone hose Ø30 mm L60 mm FVMQ inner liner — RDX30D60H REDOX
New product
Straight silicone hose ID 30 mm × 60 mm with FVMQ fluorosilicone inner liner. Multi-layer VMQ + FVMQ inner, polyester reinforcement, 4 mm wall, -50/+200 °C, 65-75 Shore A. Suited for oil, blow-by and turbo intake.
-
REDOX straight silicone hose, 30 mm inside diameter, 60 mm length, with FVMQ fluorosilicone inner liner. Used where standard VMQ cannot be: engine oil, crankcase breather, blow-by or turbo intake charged with PCV-recycled oil vapours.
Technical construction
- FVMQ inner liner (Fluorosilicone) in direct contact with oil or vapours
- Multi-layer VMQ outer
- Polyester woven reinforcement
- 4 mm wall
- ID 30 mm, length 60 mm
- -50/+200 °C continuous
- 65-75 Shore A hardness
Why FVMQ inner liner
Standard VMQ degrades on contact with hydrocarbons and hot oil vapours. FVMQ shows Class A chemical resistance to hydrocarbons and remains intact up to +200 °C.
Typical applications
Small-diameter turbo-to-intercooler link, engine breather hose, oil hose connection, crankcase-vent extension. Suited to small-displacement turbocharged engines.
Delivery
Hose supplied alone. W4 stainless clamps in 30 mm recommended. Plug-and-play friction fit.
